DROID_ERROR_AUTO_KIOSK_PORTAL_ASCENT_FAILED
Viewing this guide for
Applicable alarms (1)
DROID_ERROR_AUTO_KIOSK_PORTAL_ASCENT_FAILED
Likely outcomes — click to expand
Based on 0 missions where this alarm fired in the last 90 days as of 2026-10-13
Aggregated from fleet operations and refreshed daily. Individual outcomes may vary by site and configuration.
Troubleshooting Steps
Section titled “Troubleshooting Steps”graph TD
has-the-droid-failed-multiple-zipping-p{"<small><b>Step 1</b></small><br/>Question: ***Has the droid failed multiple ZIPP..."}
create-a-discrepancy-against-the-droid-2["<small><b>Step 2</b></small><br/>Action: Create a discrepancy against the droi..."]
assign-the-v4-zipping-point-perform-sta["<small><b>Step 3</b></small><br/>Action: Assign the V4 Zipping Point: Perform..."]
while-waiting-for-the-inspections-to-be{"<small><b>Step 4</b></small><br/>Question: While waiting for the inspections to ..."}
did-the-droid-get-stuck-on-anything-pas{"<small><b>Step 5</b></small><br/>Question: Did the droid get stuck on anything p..."}
inform-the-ranger-and-ask-them-to-clear["<small><b>Step 6</b></small><br/>Action: Inform the ranger and ask them to cle..."]
escalate-to-zipping-point-on-call{{"<small><b>Step 7</b></small><br/>Escalation: Escalate to Zipping Point On Call."}}
did-the-inspection-find-that-the-lid-cl{"<small><b>Step 8</b></small><br/>Question: Did the inspection find that the lid ..."}
escalate-to-zipping-point-on-call-lid-f{{"<small><b>Step 9</b></small><br/>Escalation: Escalate to Zipping Point On Call."}}
assign-the-v4-zipping-point-adjust-lid["<small><b>Step 10</b></small><br/>Action: Assign the V4 Zipping Point: Adjust ..."]
has-the-droid-failed-multiple-zipping-p -->|Yes| create-a-discrepancy-against-the-droid-2
has-the-droid-failed-multiple-zipping-p -->|No| assign-the-v4-zipping-point-perform-sta
assign-the-v4-zipping-point-perform-sta --> while-waiting-for-the-inspections-to-be
while-waiting-for-the-inspections-to-be -->|Yes| did-the-droid-get-stuck-on-anything-pas
while-waiting-for-the-inspections-to-be -->|No| did-the-inspection-find-that-the-lid-cl
did-the-droid-get-stuck-on-anything-pas -->|Yes| inform-the-ranger-and-ask-them-to-clear
did-the-droid-get-stuck-on-anything-pas -->|No| escalate-to-zipping-point-on-call
did-the-inspection-find-that-the-lid-cl -->|Yes| escalate-to-zipping-point-on-call-lid-f
did-the-inspection-find-that-the-lid-cl -->|No| assign-the-v4-zipping-point-adjust-lid
style has-the-droid-failed-multiple-zipping-p fill:#dbeafe,stroke:#3b82f6,color:#1e3a5f
style create-a-discrepancy-against-the-droid-2 fill:#dcfce7,stroke:#22c55e,color:#14532d
style assign-the-v4-zipping-point-perform-sta fill:#dcfce7,stroke:#22c55e,color:#14532d
style while-waiting-for-the-inspections-to-be fill:#dbeafe,stroke:#3b82f6,color:#1e3a5f
style did-the-droid-get-stuck-on-anything-pas fill:#dbeafe,stroke:#3b82f6,color:#1e3a5f
style inform-the-ranger-and-ask-them-to-clear fill:#dcfce7,stroke:#22c55e,color:#14532d
style escalate-to-zipping-point-on-call fill:#fef3c7,stroke:#f59e0b,color:#78350f
style did-the-inspection-find-that-the-lid-cl fill:#dbeafe,stroke:#3b82f6,color:#1e3a5f
style escalate-to-zipping-point-on-call-lid-f fill:#fef3c7,stroke:#f59e0b,color:#78350f
style assign-the-v4-zipping-point-adjust-lid fill:#dcfce7,stroke:#22c55e,color:#14532d Hover or focus a block to preview it. Select the block to keep the preview open.
1 question
Has the droid failed multiple ZIPPING POINT missions in a row with the same error code? (Compare the “Assets”, “Status”, and “Mission Root Errors” columns in Baraza)

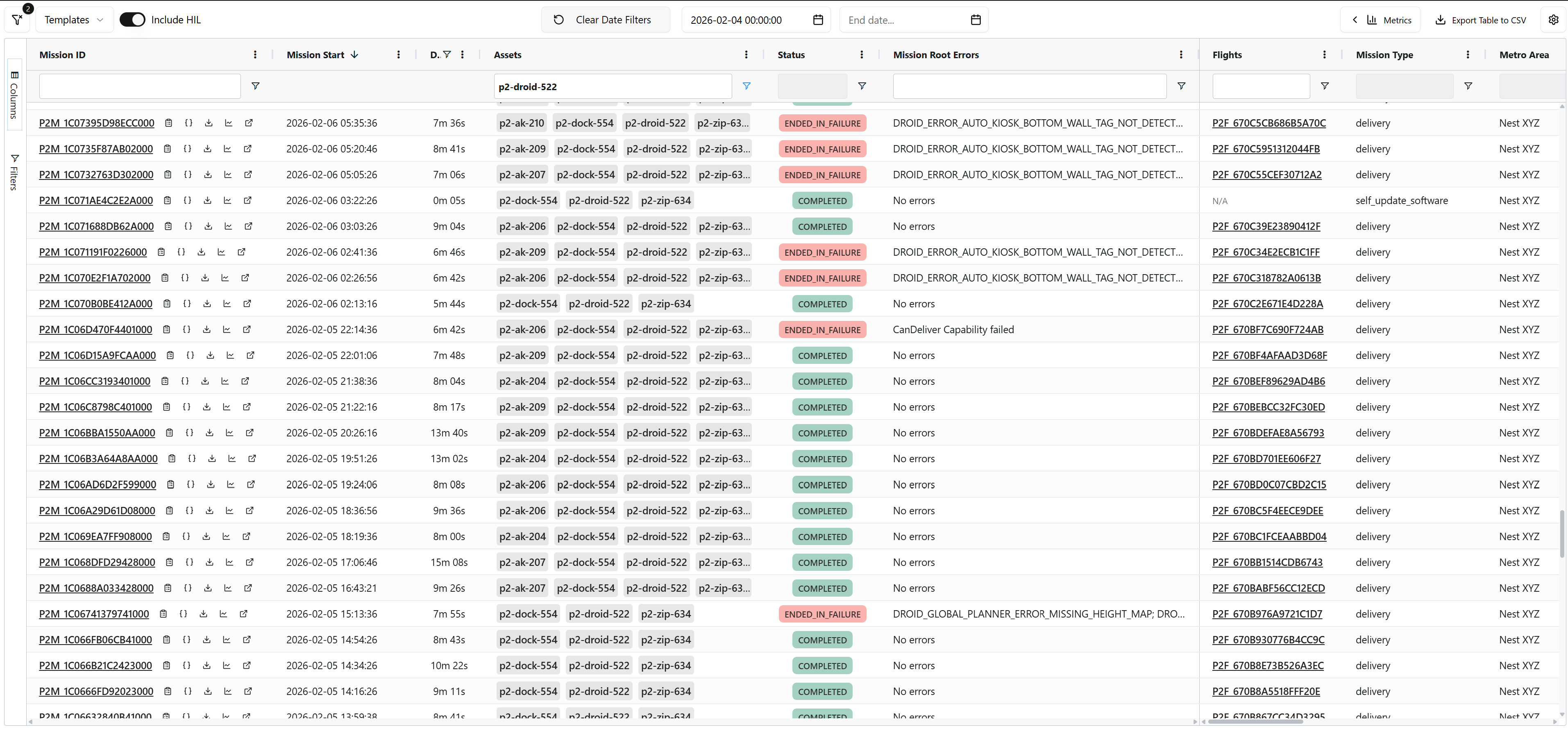

Example of a droid that hasn't failed all missions, but keeps failing specifically zipping point missions:
Example of a droid that hasn't failed all missions, but keeps failing specifically zipping point missions:
2 action
Create a discrepancy against the droid, and open an incident channel. Depending on the issue, assign the appropriate work orders or escalate. (This is often a dirty camera, which can be resolved by assigning the Clean Camera Lens on Droid Brain work order.)
If it is clear that the droid was causing the zipping point to fail, you may return the zipping point to service at your discretion.
If it is clear that the droid was causing the zipping point to fail, you may return the zipping point to service at your discretion.
3 action
Assign the V4 Zipping Point: Perform Standard Field Inspection - Ranger and V4 Zipping Point: Measure Lid Forces work orders, create an incident channel, and reach out to rangers to complete them.
4 question
While waiting for the inspections to be completed, review the video log from the droid center camera. Did the droid get past the lid on the way up?
5 question
Did the droid get stuck on anything past the lid?
6 action
Inform the ranger and ask them to clear the obstruction during the inspection. Once the obstruction is cleared, return the zipping point to service.
7 escalation
Escalate to
@zipping-point-on-call. 8 question
Did the inspection find that the lid closing force is within acceptable range?
Acceptable force ranges are provided in the Site Infrastructure Maintenance Manual (SIMM).
Acceptable force ranges are provided in the Site Infrastructure Maintenance Manual (SIMM).
9 escalation
Escalate to
@zipping-point-on-call. 10 action
Assign the V4 Zipping Point: Adjust Lid Forces - Ranger work order and communicate with a ranger to get it done.
Resolution note
This plaintext block is ready to paste into the Resolution Note field on the ZERP issue you're working. The permalink below gives engineering review access to the full step-by-step timeline including any back-navigation; share it if the case needs a deeper look.
