High Risk Flex Inspection Locations
Viewing this guide for
Applicable to EV2 only.
Abrasion/Contact High Risk Locations
Section titled “Abrasion/Contact High Risk Locations”When inspecting a specific flex, be sure to thoroughly inspect these high-risk locations for abrasions, damage, and contact.
Hover AFT Flex
Section titled “Hover AFT Flex”| Location Name | Key Flex Location |
|---|---|

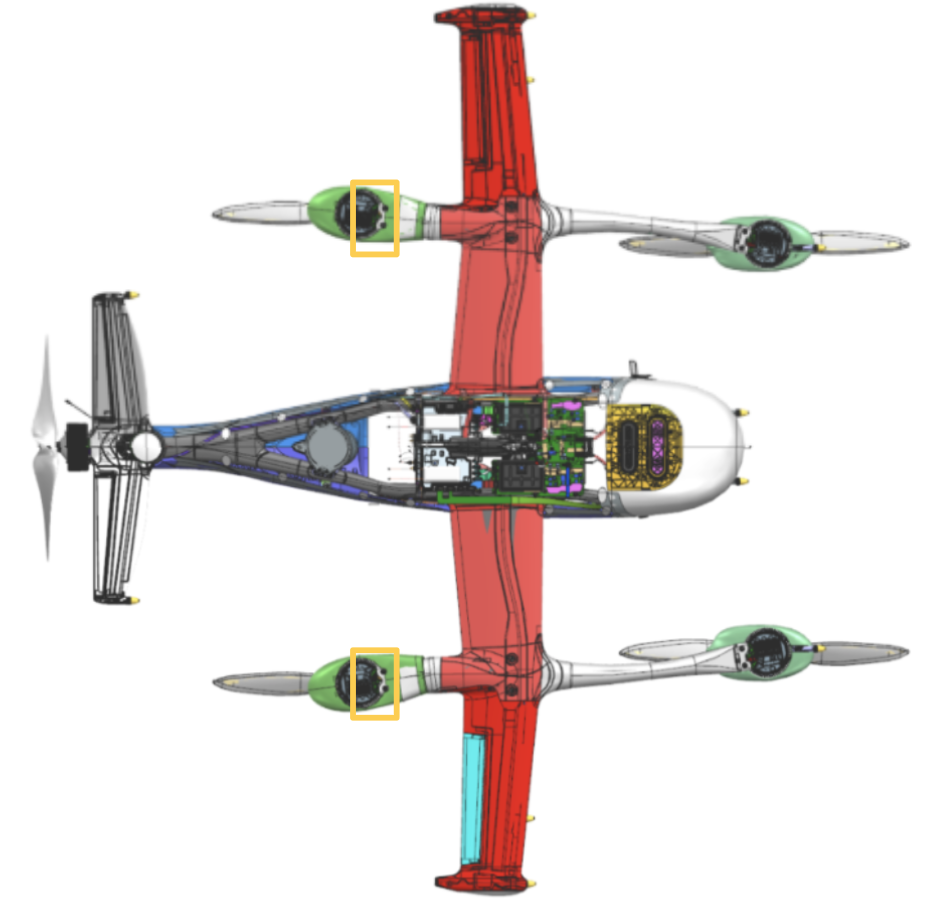

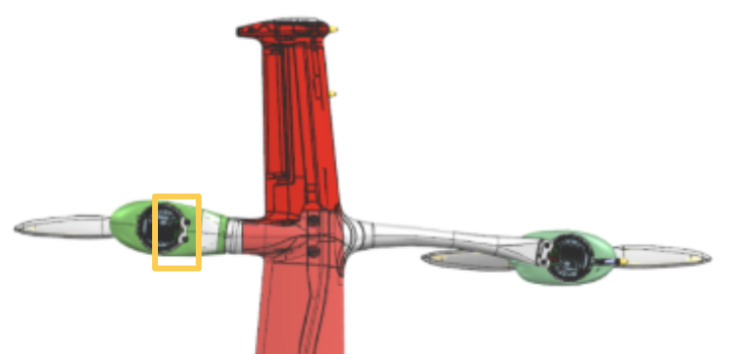

| AFT Motor Connection |   |
| M5 Connector / Wing Assembly Joint |   |
Hover FWD Flex
Section titled “Hover FWD Flex”| Location Name | Key Flex Location |
|---|---|

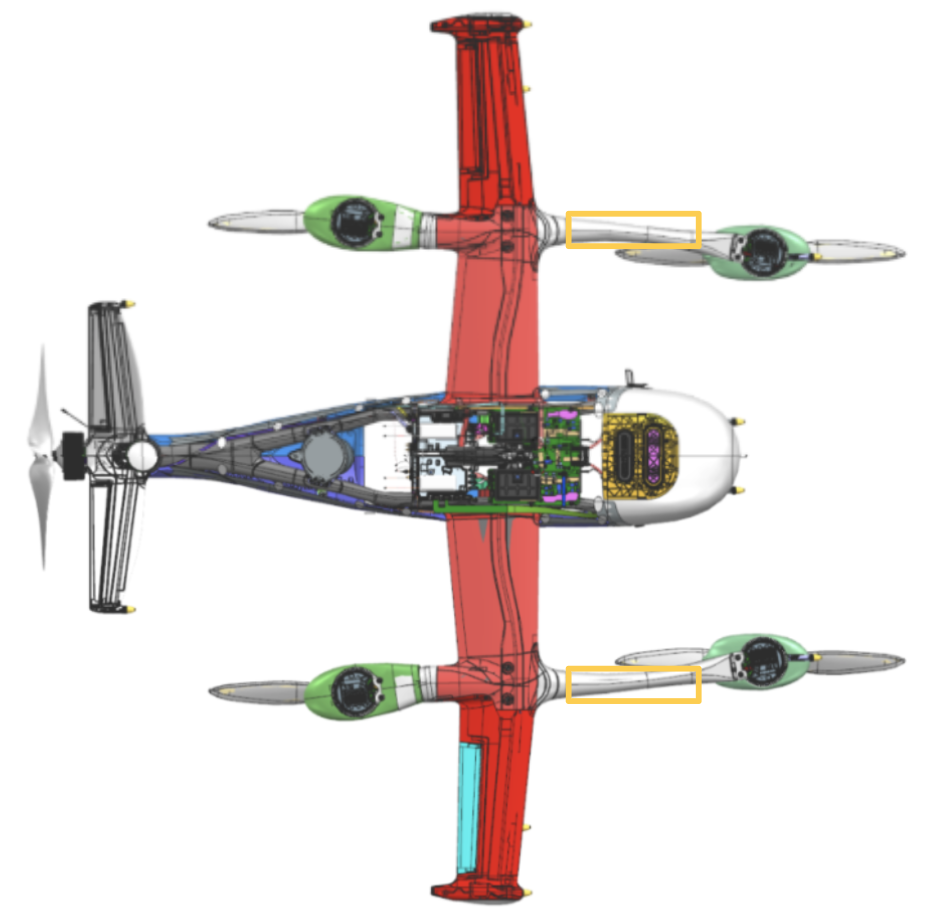

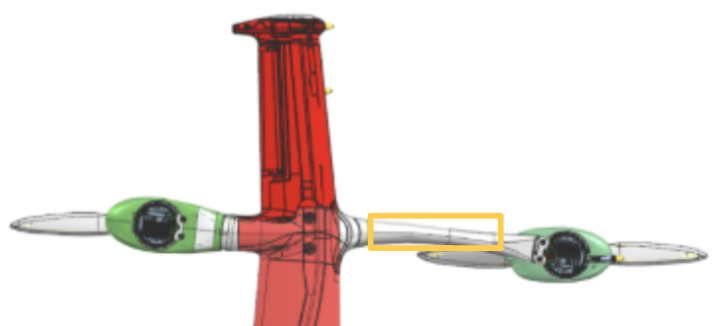

| FWD Boom |   |

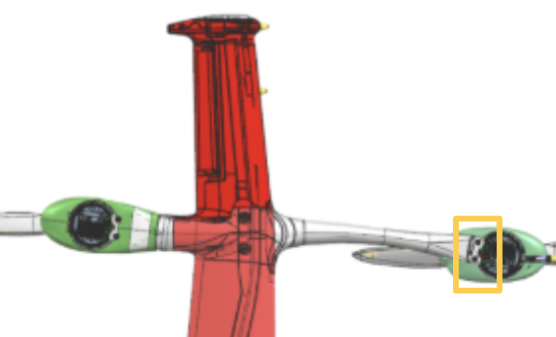

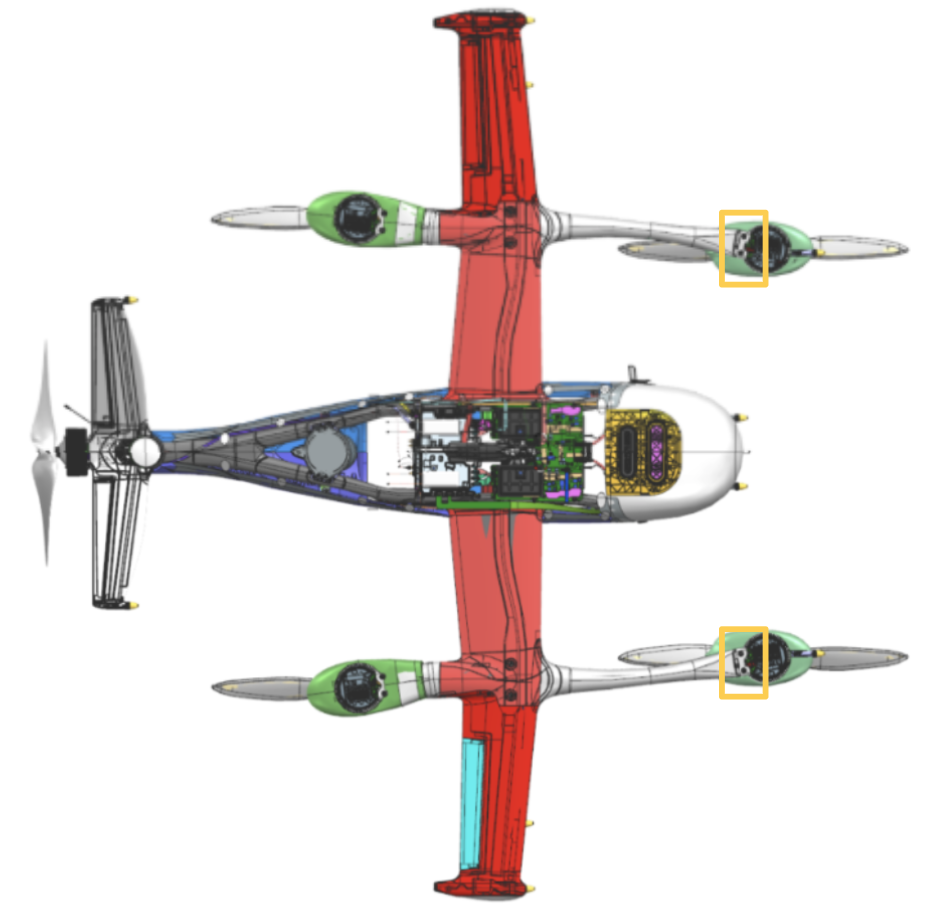

| FWD Motor Connection |   |

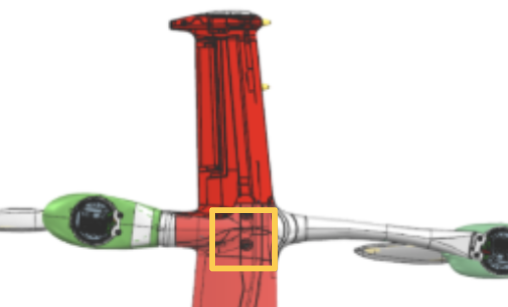

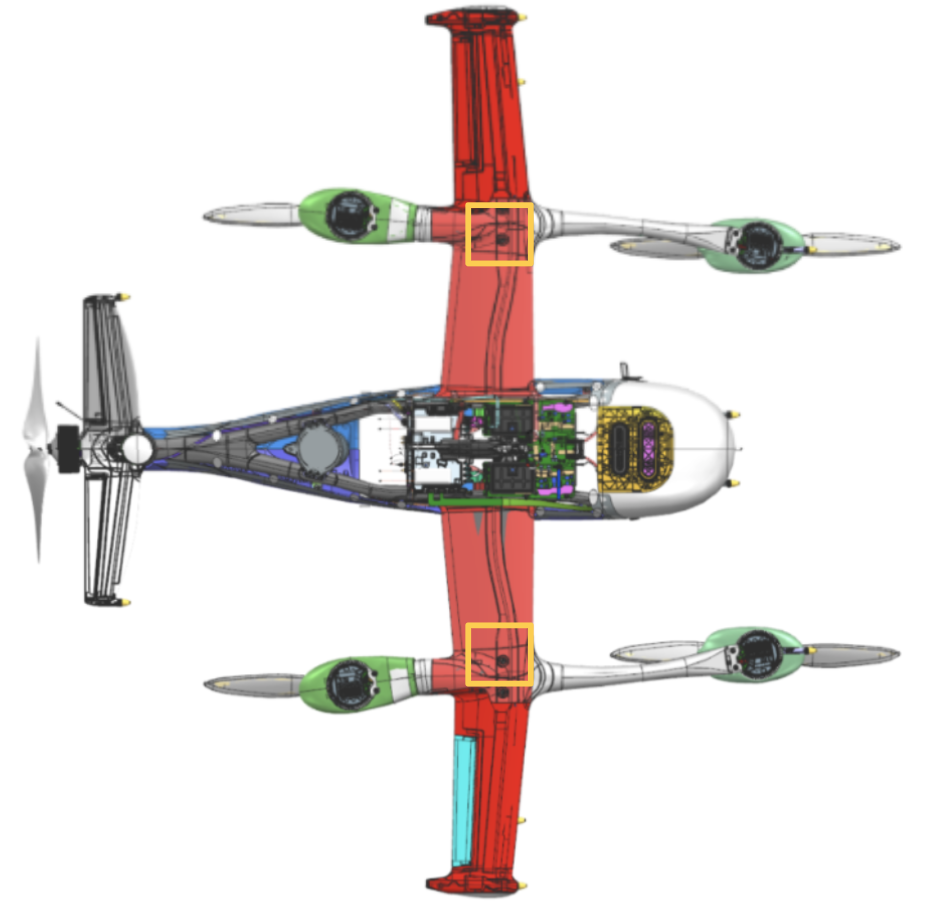

M5 Connector / Wing Assembly Joint affects FWD Hover Motor Flex, AFT Hover Motor Flex, Wingtip LED Flex | |
Wingtip Flex
Section titled “Wingtip Flex”| Location Name | Key Flex Location |
|---|---|

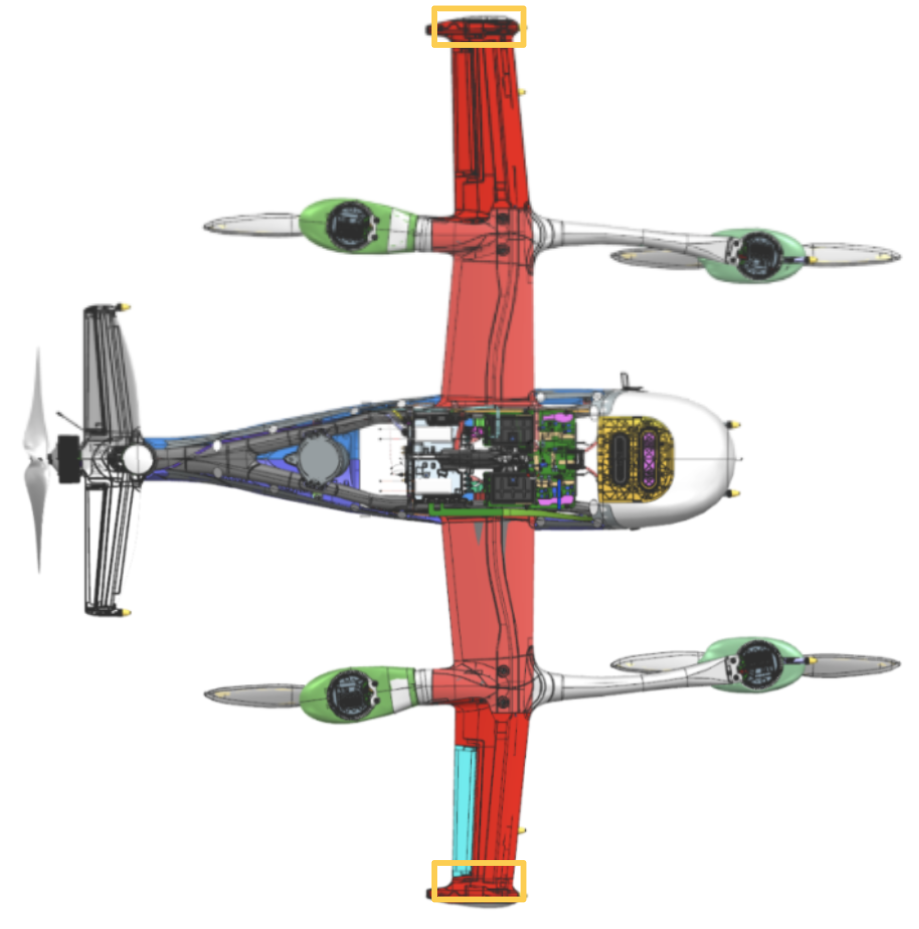

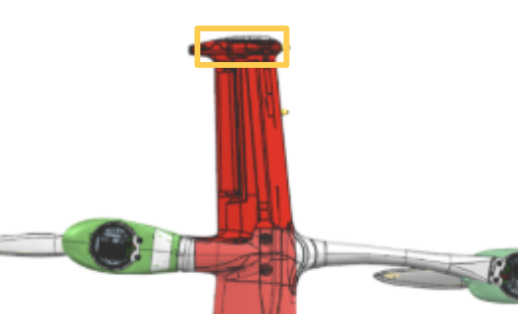

Wingtip Joint affects Wingtip LED Flex |   |

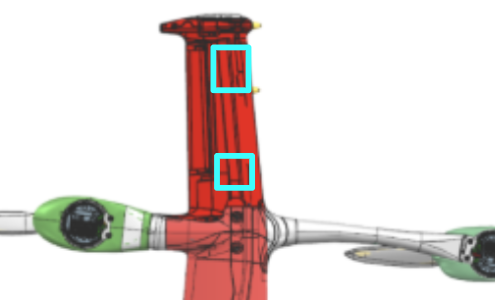

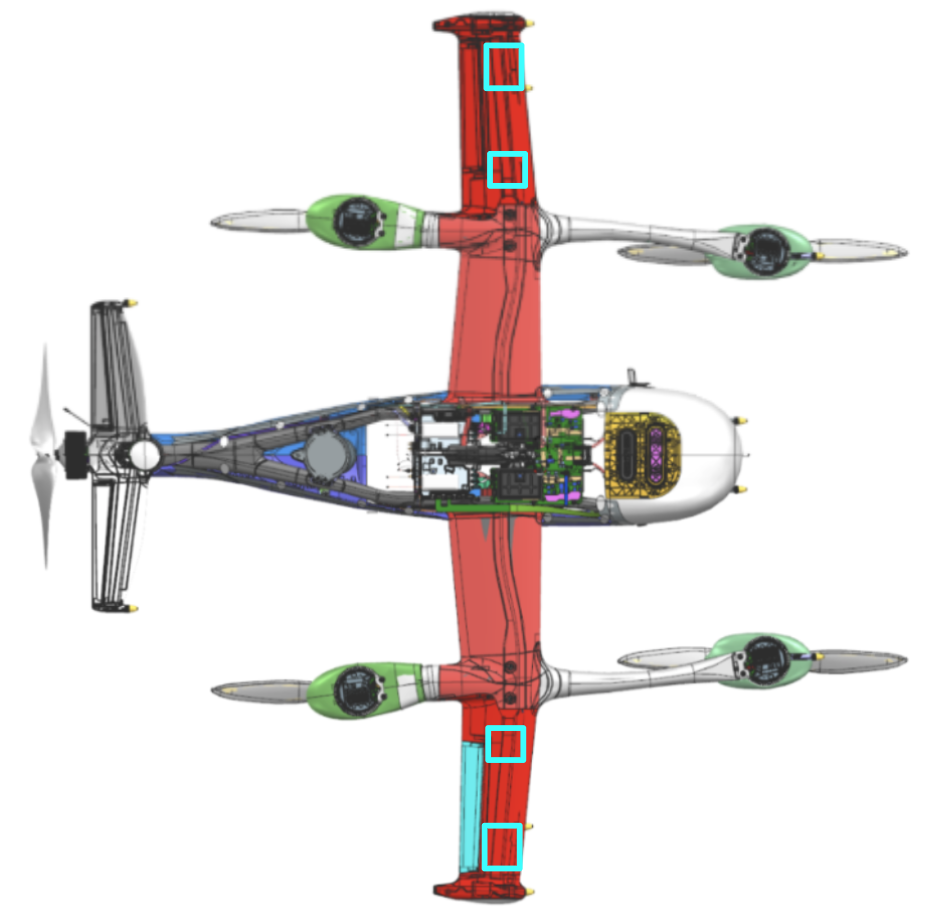

Flex Velcro / Dual Lock Locations affects Wingtip LED Flex |   |

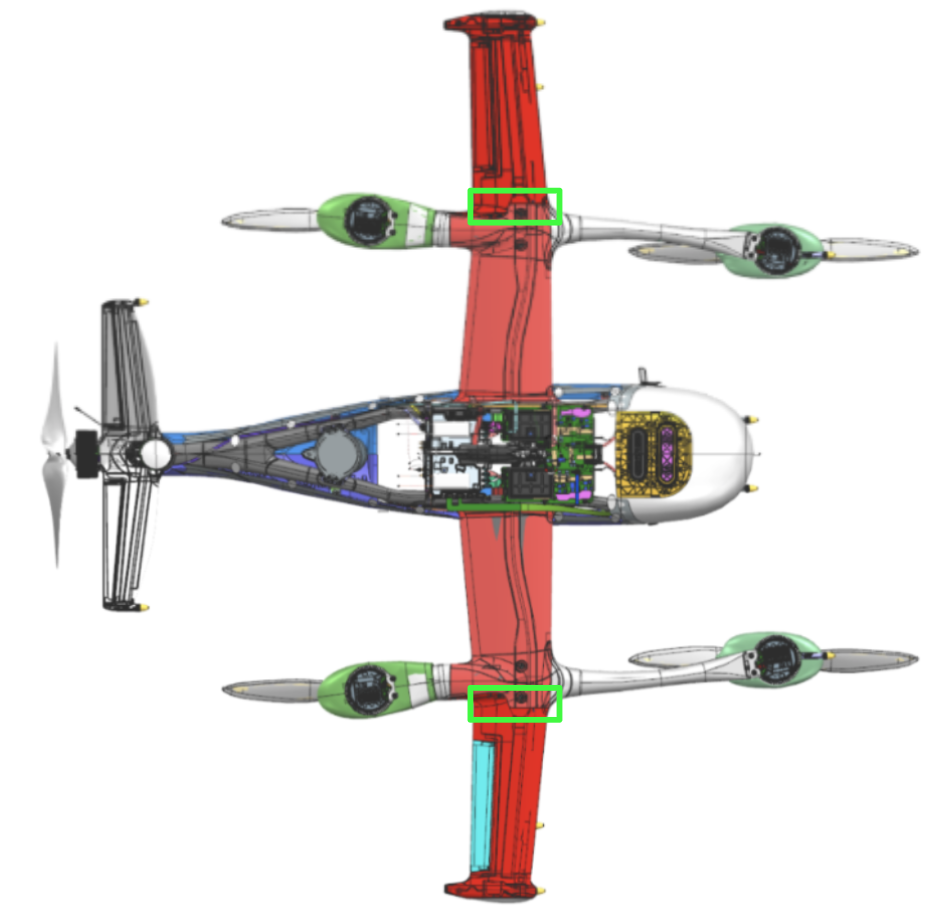

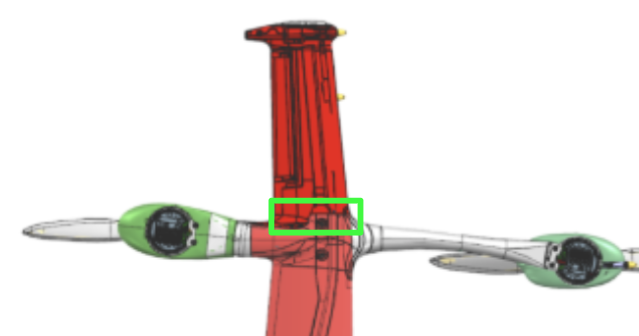

Wing Assembly Joint affects Wingtip LED Flex |   |
