Calibrate Dock Latch (Aircraft in Dock)

published HW: EV2HW: EV3

Background

If there is an Aircraft in the Dock, use FleetWrangler to wake up the Aircraft and calibrate the Dock latch.

Troubleshooting Steps

graph TD
    confirm-aircraft-is-in-dock["<small><b>Step 1</b></small><br/>Action: Confirm there is an Aircraft in the D..."]
    place-dock-into-diagnostic-mode["<small><b>Step 2</b></small><br/>Action: Place the Dock into Diagnostic mode. ..."]

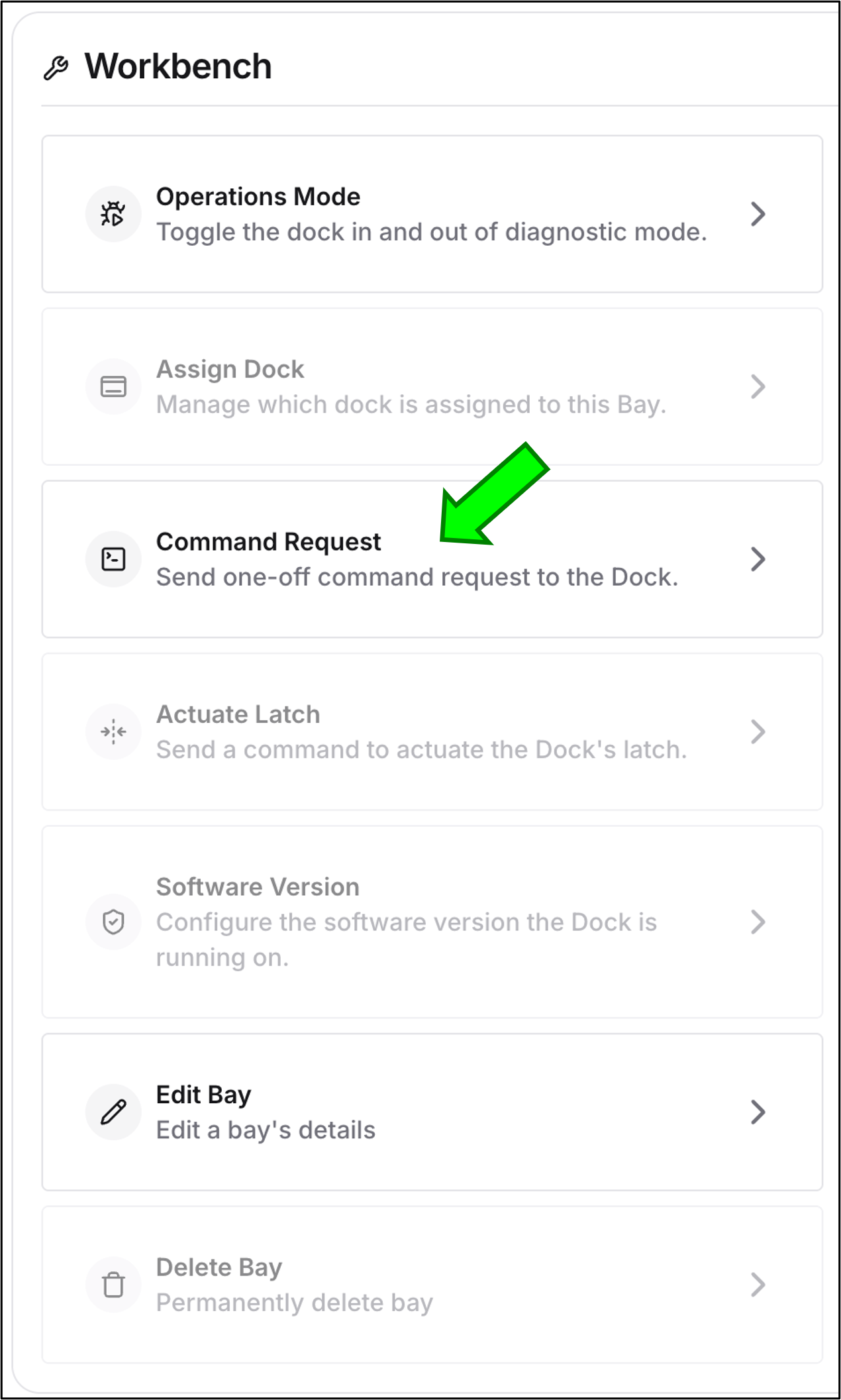

    click-command-request["<small><b>Step 3</b></small><br/>Action: Under **Workbench**, click **Command ..."]

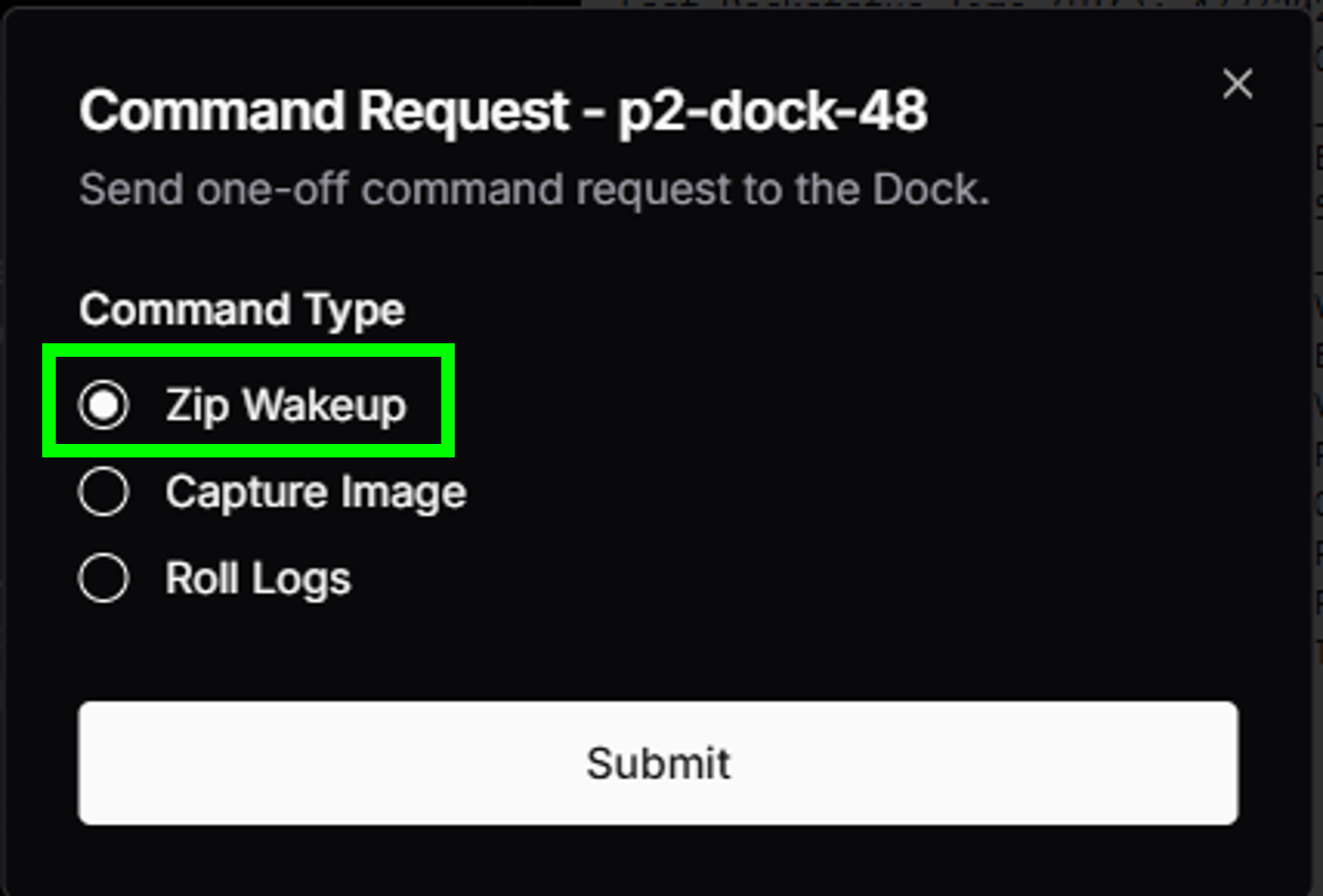

    submit-zip-wakeup["<small><b>Step 4</b></small><br/>Action: Select **Zip Wakeup** and click **Sub..."]
    confirm-latch-retracted["<small><b>Step 5</b></small><br/>Action: In FleetWrangler, in the Dock's **Det..."]
    place-dock-into-standard-mode["<small><b>Step 6</b></small><br/>Action: Place the Dock into Standard mode. Fo..."]
    confirm-aircraft-is-in-dock --> place-dock-into-diagnostic-mode
    place-dock-into-diagnostic-mode --> click-command-request
    click-command-request --> submit-zip-wakeup
    submit-zip-wakeup --> confirm-latch-retracted
    confirm-latch-retracted --> place-dock-into-standard-mode
    style confirm-aircraft-is-in-dock fill:#dcfce7,stroke:#22c55e,color:#14532d
    style place-dock-into-diagnostic-mode fill:#dcfce7,stroke:#22c55e,color:#14532d
    style click-command-request fill:#dcfce7,stroke:#22c55e,color:#14532d
    style submit-zip-wakeup fill:#dcfce7,stroke:#22c55e,color:#14532d
    style confirm-latch-retracted fill:#dcfce7,stroke:#22c55e,color:#14532d
    style place-dock-into-standard-mode fill:#dcfce7,stroke:#22c55e,color:#14532d

Hover or focus a block to preview it. Select the block to keep the preview open.

1 action

Confirm there is an Aircraft in the Dock.

If there is no Aircraft in the Dock, follow Calibrate Dock Latch (No Aircraft in Dock) instead.
