0x13000F CONTROLLER_CODE_FRONT_ROTOR_OUT
Viewing this guide for
Applicable alarms (3)
CONTROLLER_CODE_FRONT_ROTOR_OUTZIP_GNC_CONTROLLER_FRONT_ROTOR_OUT0x13000F
Likely outcomes — click to expand
Based on 0 missions where this alarm fired in the last
90 days
(for CONTROLLER_CODE_FRONT_ROTOR_OUT) as of 2026-10-13
Aggregated from fleet operations and refreshed daily. Individual outcomes may vary by site and configuration.
Background
Section titled “Background”This error code and troubleshooting page is a temporary catchall for more specific alarms/errors until ZERP auto-issues are configured for all root causes.
Troubleshooting Steps
Section titled “Troubleshooting Steps”graph TD
open-the-error-flow-graph["<small><b>Step 1</b></small><br/>Action: On the failed mission P2M page in Bar..."]
check-for-mission-step-not-serviceable{"<small><b>Step 2</b></small><br/>Question: In the error graph, check whether the..."}
check-previous-incident-and-clear-latched-error["<small><b>Step 3</b></small><br/>Action: Do not treat the controller error as ..."]
identify-the-root-cause["<small><b>Step 4</b></small><br/>Action: In the error graph, follow the caused..."]
can-you-follow-a-root-cause-guide{"<small><b>Step 5</b></small><br/>Question: Can you identify the last alarm/error..."}
follow-the-root-cause-guide["<small><b>Step 6</b></small><br/>Action: Follow the troubleshooting guide for ..."]
escalate-to-p2-zip-controls{{"<small><b>Step 7</b></small><br/>Escalation: Escalate to P2 Zip Controls On Call f..."}}
open-the-error-flow-graph --> check-for-mission-step-not-serviceable
check-for-mission-step-not-serviceable -->|Yes| check-previous-incident-and-clear-latched-error
check-for-mission-step-not-serviceable -->|No| identify-the-root-cause
identify-the-root-cause --> can-you-follow-a-root-cause-guide
can-you-follow-a-root-cause-guide -->|Yes| follow-the-root-cause-guide
can-you-follow-a-root-cause-guide -->|No| escalate-to-p2-zip-controls
style open-the-error-flow-graph fill:#dcfce7,stroke:#22c55e,color:#14532d
style check-for-mission-step-not-serviceable fill:#dbeafe,stroke:#3b82f6,color:#1e3a5f
style check-previous-incident-and-clear-latched-error fill:#dcfce7,stroke:#22c55e,color:#14532d
style identify-the-root-cause fill:#dcfce7,stroke:#22c55e,color:#14532d
style can-you-follow-a-root-cause-guide fill:#dbeafe,stroke:#3b82f6,color:#1e3a5f
style follow-the-root-cause-guide fill:#dcfce7,stroke:#22c55e,color:#14532d
style escalate-to-p2-zip-controls fill:#fef3c7,stroke:#f59e0b,color:#78350f Hover or focus a block to preview it. Select the block to keep the preview open.
1 action
On the failed mission P2M page in Baraza, find the relevant failure-cause row and click the error flow graph icon.
Example graph icon on a P2M page:
Example graph icon on a P2M page:
2 question
In the error graph, check whether the
If this error is present, the controller error is not the root cause for this flight. It indicates a failure from the previous flight was latched and not cleared correctly.
Example of
Is
ZIP_EXECUTIVE_V4_MISSION_STEP_NOT_SERVICEABLE executive error is above the controller error.If this error is present, the controller error is not the root cause for this flight. It indicates a failure from the previous flight was latched and not cleared correctly.

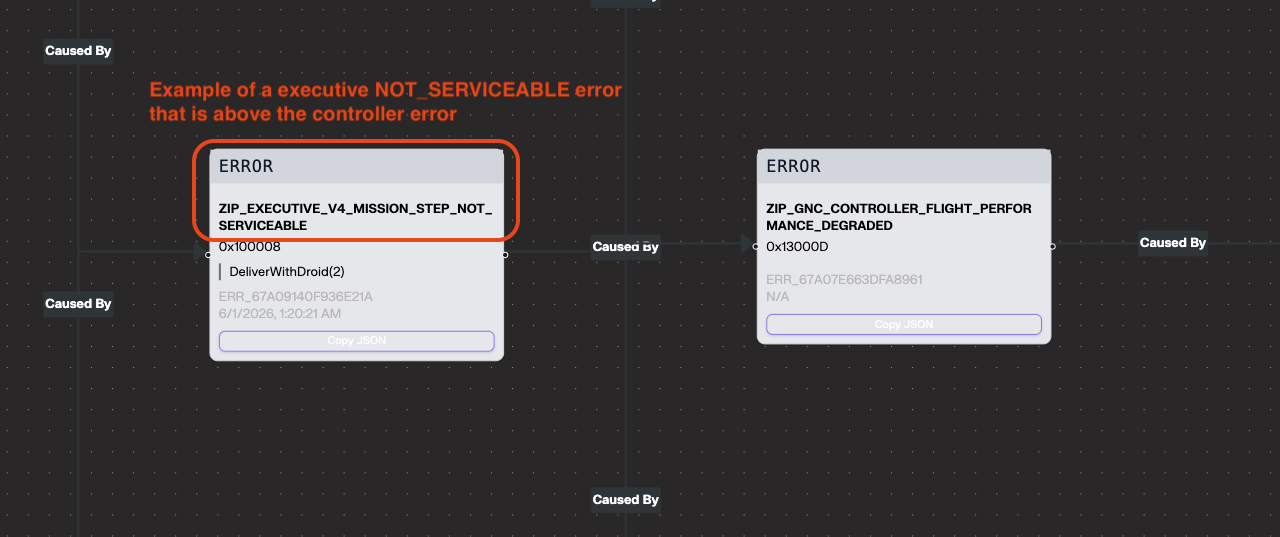

Example of
ZIP_EXECUTIVE_V4_MISSION_STEP_NOT_SERVICEABLE above a controller error:Is
ZIP_EXECUTIVE_V4_MISSION_STEP_NOT_SERVICEABLE present above the controller error? 3 action
Do not treat the controller error as the root cause of this mission. The controller error is showing up because the zip executive is latching onto an error from a previous failing mission.
Use ZERP to check the previous incident for this Aircraft and verify that it was resolved correctly.
If the previous incident is still unresolved, resolve that incident first. If the previous incident was resolved correctly, clear the latched error with these steps:
1. Restart Zip Executive.
2. If the latched error does not clear after restarting Zip Executive, Power Cycle Aircraft.
Use ZERP to check the previous incident for this Aircraft and verify that it was resolved correctly.
If the previous incident is still unresolved, resolve that incident first. If the previous incident was resolved correctly, clear the latched error with these steps:
1. Restart Zip Executive.
2. If the latched error does not clear after restarting Zip Executive, Power Cycle Aircraft.
4 action
In the error graph, follow the caused-by chain to the last box. The last box is the root-cause alarm or error.

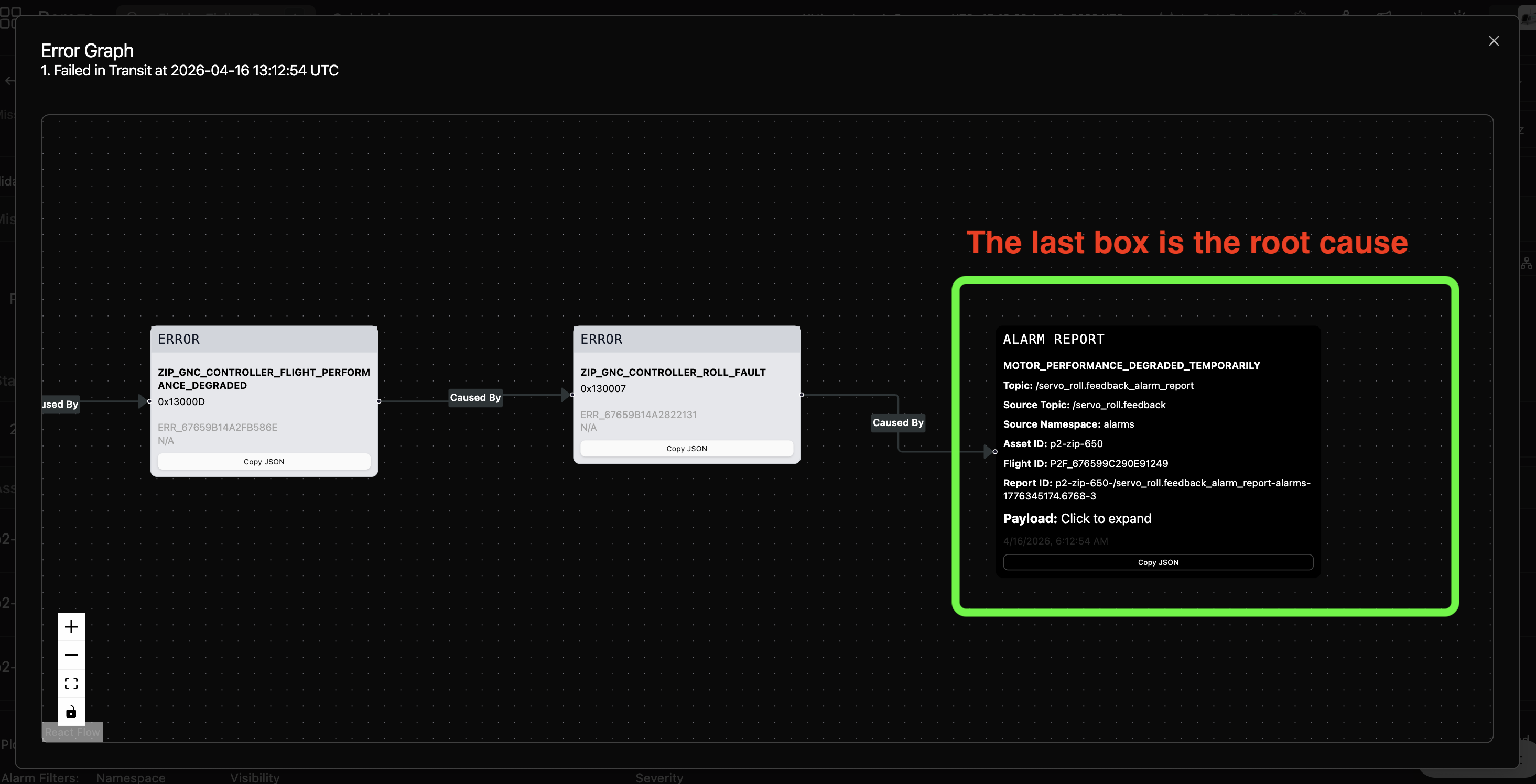

Example error graph with the last box highlighted as the root cause:
Example error graph with the last box highlighted as the root cause:
5 question
Can you identify the last alarm/error and find its troubleshooting guide?
6 action
Follow the troubleshooting guide for the last alarm/error. Use Alarm Lookup if you need to search by alarm name or hex code.
7 escalation
Escalate to P2 Zip Controls On Call for assistance.
