Poor Zip <-> Dock Comms During Undocking
Viewing this guide for
Background
Section titled “Background”You were led here because the aircraft executive indicated that it never received the OPEN command acknowledgement from the dock while undocking. This is usually indicative of poor zip ↔︎ dock comms quality during undocking.
Troubleshooting Steps
Section titled “Troubleshooting Steps”graph TD
ensure-both-the-dock-and-the-aircraft-a["<small><b>Step 1</b></small><br/>Action: Ensure both the Dock and the Aircraft..."]
check-the-bays-latch-service-state-on-f{"<small><b>Step 2</b></small><br/>Question: Check the bay’s latch service state o..."}
retracted-this-means-that-the-dock-neve("<small><b>Step 3</b></small><br/>Reference: This means that the Dock never tried ...")
in-the-zerp-bom-list-for-the-aircraft-d{"<small><b>Step 4</b></small><br/>Question: In the ZERP BOM list for the aircraft..."}
this-is-likely-a-hardware-issue-known-de("<small><b>Step 5</b></small><br/>Reference: This is likely a hardware issue / kno...")
clear-the-dock-discrepancy-the-dock-may["<small><b>Step 6</b></small><br/>Action: Clear the dock discrepancy, the dock ..."]
replace-the-docking-fin-the-aircraft-ma["<small><b>Step 7</b></small><br/>Action: Replace the docking fin. The aircraft..."]
continue-to-step-2["<small><b>Step 8</b></small><br/>Action: Continue to step 2."]
is-this-the-first-time-this-has-happene{"<small><b>Step 9</b></small><br/>Question: Is this the first time this has happe..."}
clear-the-dock-and-aircraft-discrepanci("<small><b>Step 10</b></small><br/>Reference: Clear both the aircraft and Dock Disc...")
pair-repeat-manually-remove-the-aircraf["<small><b>Step 11</b></small><br/>Action: Manually remove the Aircraft from the..."]
pair-repeat-move-the-aircraft-to-anothe["<small><b>Step 12</b></small><br/>Action: Move the Aircraft to another Dock."]
pair-repeat-clear-the-dock-and-aircraft["<small><b>Step 13</b></small><br/>Action: Clear the Dock and Aircraft discrepan..."]
dock-repeat-manually-remove-the-aircraf["<small><b>Step 14</b></small><br/>Action: Manually remove the Aircraft from the..."]
dock-repeat-move-the-aircraft-to-anothe["<small><b>Step 15</b></small><br/>Action: Move the Aircraft to another Dock."]
dock-repeat-clear-the-aircraft-discrep["<small><b>Step 16</b></small><br/>Action: Clear the Aircraft Discrepancy. Aircr..."]
dock-repeat-follow-the-steps-in-dock-no["<small><b>Step 17</b></small><br/>Action: Follow the steps in Dock Not Communi..."]
dock-repeat-escalate-to-p2-dock-hardwar{{"<small><b>Step 18</b></small><br/>Escalation: Escalate to P2 Dock Hardware On Call ..."}}
aircraft-repeat-manually-remove-the-air["<small><b>Step 19</b></small><br/>Action: Manually remove the Aircraft from the..."]
aircraft-repeat-clear-the-dock-discrepa["<small><b>Step 20</b></small><br/>Action: Clear the Dock discrepancy. The Dock ..."]
aircraft-repeat-follow-the-steps-in-doc["<small><b>Step 21</b></small><br/>Action: Follow the steps in Dock Not Communi..."]
aircraft-repeat-escalate-to-p2-zip-hard{{"<small><b>Step 22</b></small><br/>Escalation: Escalate to P2 Zip Hardware On Call i..."}}
faulted-this-means-that-something-went("<small><b>Step 23</b></small><br/>Reference: This means that something went wrong ...")
faulted-remove-the-aircraft-from-the-do["<small><b>Step 24</b></small><br/>Action: Remove the Aircraft from the Dock usi..."]
faulted-clear-the-aircraft-discrepancy["<small><b>Step 25</b></small><br/>Action: Clear the Aircraft Discrepancy. Aircr..."]
faulted-escalate-to-p2-dock-embedded-on{{"<small><b>Step 26</b></small><br/>Escalation: Escalate to P2 Dock Embedded On Call."}}
open-retained-the-dock-thought-that-it["<small><b>Step 27</b></small><br/>Action: The Dock thought that it opened but t..."]
if-none-of-the-above-apply-escalate-to{{"<small><b>Step 28</b></small><br/>Escalation: If none of the above apply, escalate ..."}}
ensure-both-the-dock-and-the-aircraft-a --> check-the-bays-latch-service-state-on-f
check-the-bays-latch-service-state-on-f -->|Latch service state is RETR...| retracted-this-means-that-the-dock-neve
check-the-bays-latch-service-state-on-f -->|Latch service state is FAULTED| faulted-this-means-that-something-went
check-the-bays-latch-service-state-on-f -->|Latch service state is OPEN...| open-retained-the-dock-thought-that-it
check-the-bays-latch-service-state-on-f -->|None of the above apply| if-none-of-the-above-apply-escalate-to
retracted-this-means-that-the-dock-neve --> in-the-zerp-bom-list-for-the-aircraft-d
in-the-zerp-bom-list-for-the-aircraft-d -->|Yes, this aircraft has the ...| this-is-likely-a-hardware-issue-known-de
in-the-zerp-bom-list-for-the-aircraft-d -->|No, this aircraft does not ...| continue-to-step-2
this-is-likely-a-hardware-issue-known-de --> clear-the-dock-discrepancy-the-dock-may
clear-the-dock-discrepancy-the-dock-may --> replace-the-docking-fin-the-aircraft-ma
continue-to-step-2 --> is-this-the-first-time-this-has-happene
is-this-the-first-time-this-has-happene -->|Yes - This is the first tim...| clear-the-dock-and-aircraft-discrepanci
is-this-the-first-time-this-has-happene -->|No - This pair is a repeat ...| pair-repeat-manually-remove-the-aircraf
is-this-the-first-time-this-has-happene -->|No - Only the Dock is a rep...| dock-repeat-manually-remove-the-aircraf
is-this-the-first-time-this-has-happene -->|No - Only the Aircraft is a...| aircraft-repeat-manually-remove-the-air
pair-repeat-manually-remove-the-aircraf --> pair-repeat-move-the-aircraft-to-anothe
pair-repeat-move-the-aircraft-to-anothe --> pair-repeat-clear-the-dock-and-aircraft
dock-repeat-manually-remove-the-aircraf --> dock-repeat-move-the-aircraft-to-anothe
dock-repeat-move-the-aircraft-to-anothe --> dock-repeat-clear-the-aircraft-discrep
dock-repeat-clear-the-aircraft-discrep --> dock-repeat-follow-the-steps-in-dock-no
dock-repeat-follow-the-steps-in-dock-no --> dock-repeat-escalate-to-p2-dock-hardwar
aircraft-repeat-manually-remove-the-air --> aircraft-repeat-clear-the-dock-discrepa
aircraft-repeat-clear-the-dock-discrepa --> aircraft-repeat-follow-the-steps-in-doc
aircraft-repeat-follow-the-steps-in-doc --> aircraft-repeat-escalate-to-p2-zip-hard
faulted-this-means-that-something-went --> faulted-remove-the-aircraft-from-the-do
faulted-remove-the-aircraft-from-the-do --> faulted-clear-the-aircraft-discrepancy
faulted-clear-the-aircraft-discrepancy --> faulted-escalate-to-p2-dock-embedded-on
style ensure-both-the-dock-and-the-aircraft-a fill:#dcfce7,stroke:#22c55e,color:#14532d
style check-the-bays-latch-service-state-on-f fill:#dbeafe,stroke:#3b82f6,color:#1e3a5f
style retracted-this-means-that-the-dock-neve fill:#f3e8ff,stroke:#a855f7,color:#581c87
style in-the-zerp-bom-list-for-the-aircraft-d fill:#dbeafe,stroke:#3b82f6,color:#1e3a5f
style this-is-likely-a-hardware-issue-known-de fill:#f3e8ff,stroke:#a855f7,color:#581c87
style clear-the-dock-discrepancy-the-dock-may fill:#dcfce7,stroke:#22c55e,color:#14532d
style replace-the-docking-fin-the-aircraft-ma fill:#dcfce7,stroke:#22c55e,color:#14532d
style continue-to-step-2 fill:#dcfce7,stroke:#22c55e,color:#14532d
style is-this-the-first-time-this-has-happene fill:#dbeafe,stroke:#3b82f6,color:#1e3a5f
style clear-the-dock-and-aircraft-discrepanci fill:#f3e8ff,stroke:#a855f7,color:#581c87
style pair-repeat-manually-remove-the-aircraf fill:#dcfce7,stroke:#22c55e,color:#14532d
style pair-repeat-move-the-aircraft-to-anothe fill:#dcfce7,stroke:#22c55e,color:#14532d
style pair-repeat-clear-the-dock-and-aircraft fill:#dcfce7,stroke:#22c55e,color:#14532d
style dock-repeat-manually-remove-the-aircraf fill:#dcfce7,stroke:#22c55e,color:#14532d
style dock-repeat-move-the-aircraft-to-anothe fill:#dcfce7,stroke:#22c55e,color:#14532d
style dock-repeat-clear-the-aircraft-discrep fill:#dcfce7,stroke:#22c55e,color:#14532d
style dock-repeat-follow-the-steps-in-dock-no fill:#dcfce7,stroke:#22c55e,color:#14532d
style dock-repeat-escalate-to-p2-dock-hardwar fill:#fef3c7,stroke:#f59e0b,color:#78350f
style aircraft-repeat-manually-remove-the-air fill:#dcfce7,stroke:#22c55e,color:#14532d
style aircraft-repeat-clear-the-dock-discrepa fill:#dcfce7,stroke:#22c55e,color:#14532d
style aircraft-repeat-follow-the-steps-in-doc fill:#dcfce7,stroke:#22c55e,color:#14532d
style aircraft-repeat-escalate-to-p2-zip-hard fill:#fef3c7,stroke:#f59e0b,color:#78350f
style faulted-this-means-that-something-went fill:#f3e8ff,stroke:#a855f7,color:#581c87
style faulted-remove-the-aircraft-from-the-do fill:#dcfce7,stroke:#22c55e,color:#14532d
style faulted-clear-the-aircraft-discrepancy fill:#dcfce7,stroke:#22c55e,color:#14532d
style faulted-escalate-to-p2-dock-embedded-on fill:#fef3c7,stroke:#f59e0b,color:#78350f
style open-retained-the-dock-thought-that-it fill:#dcfce7,stroke:#22c55e,color:#14532d
style if-none-of-the-above-apply-escalate-to fill:#fef3c7,stroke:#f59e0b,color:#78350f Hover or focus a block to preview it. Select the block to keep the preview open.
1 action
Ensure both the Dock and the Aircraft are grounded. Do not clear either discrepancies until the following steps explicitly tell you too.
2 question
Check the bay’s latch service state on Fleet Wrangler and take the appropriate action below depending on what it says:
3 reference
This means that the Dock never tried to open the latch. There is likely a comms issue with the Dock or the Aircraft.
4 question
In the ZERP BOM list for the aircraft, does this aircraft have the

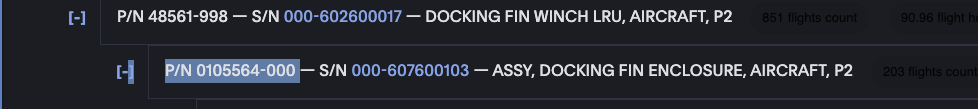

P/N 0105564-000 docking fin enclosure? 5 reference
This is likely a hardware issue / known design defect specific to the
P/N 0105564-000 docking fin. 6 action
Clear the dock discrepancy, the dock may return to service.
7 action
Replace the docking fin. The aircraft may need to be manually removed. It may not be possible to reposition the aircraft because it might not be able to get out of the dock due to poor comms. The aircraft can return to service after the fin is replaced.
8 action
Continue to step 2.
9 question
Is this the first time this has happened on this Aircraft and/or this Dock?
10 reference
Clear both the aircraft and Dock Discrepancies. The Aircraft and Dock may return to service.
11 action
Manually remove the Aircraft from the Dock using Actuate Latch Commands.
12 action
Move the Aircraft to another Dock.
13 action
Clear the Dock and Aircraft discrepancies. The Aircraft and Dock may return to service.
14 action
Manually remove the Aircraft from the Dock using Actuate Latch Commands
15 action
Move the Aircraft to another Dock.
16 action
Clear the Aircraft Discrepancy. Aircraft may return to service. Do not clear the Dock discrepancy.
17 action
Follow the steps in Dock Not Communicating with Aircraft to determine what component is broken in the Dock to cause intermittent comms. Since this is an intermittent issue, you may need to wiggle connections to reproduce the failure.
18 escalation
Escalate to P2 Dock Hardware On Call if there is no resolution.
19 action
Manually remove the Aircraft from the Dock using Actuate Latch Commands
20 action
Clear the Dock discrepancy. The Dock may return to service. Do not clear the Aircraft discrepancy.
21 action
Follow the steps in Dock Not Communicating with Aircraft to determine what component is broken in the Aircraft to cause intermittent comms. Since this is an intermittent issue, you may need to wiggle connections to reproduce the failure.
22 escalation
Escalate to P2 Zip Hardware On Call if there is no resolution.
23 reference
This means that something went wrong with the latch between the start of preflight and takeoff.
24 action
Remove the Aircraft from the Dock using the RESET command, for steps see Actuate Latch Commands.
25 action
Clear the Aircraft Discrepancy. Aircraft may return to service. Do not clear the Dock discrepancy.
26 escalation
Escalate to P2 Dock Embedded On Call.
27 action
The Dock thought that it opened but the Aircraft did not exit. Follow Aircraft Stuck During Undocking After OPEN Command Received.
28 escalation
If none of the above apply, escalate to P2 Exec On Call for support.
Resolution note
This plaintext block is ready to paste into the Resolution Note field on the ZERP issue you're working. The permalink below gives engineering review access to the full step-by-step timeline including any back-navigation; share it if the case needs a deeper look.
Permalink:
Session is too large to fit in a URL. Use Download session JSON to share the timeline out-of-band.
Did this guide help you get unblocked?
