This guide applies to EV3 aircraft only.
Background
Section titled “Background”Use this guide when a CRITICAL_WORKFLOW_ERROR report includes the distro_supercap/supercap_esr_range check. The guide identifies failures caused by outdated thresholds or low-voltage storage and routes readings outside the nominal range to Distro replacement.
Troubleshooting Steps
Section titled “Troubleshooting Steps”graph TD
load-the-failed-mission-in-the-supercap["<small><b>Step 1</b></small><br/>Telemetry: Load the failed mission into the Sup..."]
are-the-supercap-esr-values-below-0-2{"<small><b>Step 2</b></small><br/>Question: Are any Supercap ESR values below 0.2..."}
outdated-thresholds-low-esr-power-cycle["<small><b>Step 3</b></small><br/>Action: This is an example of a Supercap ESR ..."]
are-the-supercap-esr-values-above-0-7{"<small><b>Step 4</b></small><br/>Question: Are any Supercap ESR values greater t..."}
outdated-thresholds-high-esr-power-cycle["<small><b>Step 5</b></small><br/>Action: This is a Supercap ESR failure caused..."]
are-the-supercap-esr-values-within-cur{"<small><b>Step 6</b></small><br/>Question: Check the Supercap ESR values 3 minut..."}
replace-distro-supercap-stack["<small><b>Step 7</b></small><br/>Action: Replace Distro assembly on Aircraft u..."]
low-voltage-storage-false-flag-power-cycle["<small><b>Step 8</b></small><br/>Action: This is a false flag due to a trigger..."]
load-the-failed-mission-in-the-supercap --> are-the-supercap-esr-values-below-0-2
are-the-supercap-esr-values-below-0-2 -->|Yes| outdated-thresholds-low-esr-power-cycle
are-the-supercap-esr-values-below-0-2 -->|No| are-the-supercap-esr-values-above-0-7
are-the-supercap-esr-values-above-0-7 -->|Yes| outdated-thresholds-high-esr-power-cycle
are-the-supercap-esr-values-above-0-7 -->|No| are-the-supercap-esr-values-within-cur
are-the-supercap-esr-values-within-cur -->|Yes, the Supercap ESR value...| low-voltage-storage-false-flag-power-cycle
are-the-supercap-esr-values-within-cur -->|No, the Supercap ESR values...| replace-distro-supercap-stack
style are-the-supercap-esr-values-below-0-2 fill:#dbeafe,stroke:#3b82f6,color:#1e3a5f
style outdated-thresholds-low-esr-power-cycle fill:#dcfce7,stroke:#22c55e,color:#14532d
style are-the-supercap-esr-values-above-0-7 fill:#dbeafe,stroke:#3b82f6,color:#1e3a5f
style outdated-thresholds-high-esr-power-cycle fill:#dcfce7,stroke:#22c55e,color:#14532d
style are-the-supercap-esr-values-within-cur fill:#dbeafe,stroke:#3b82f6,color:#1e3a5f
style replace-distro-supercap-stack fill:#dcfce7,stroke:#22c55e,color:#14532d
style low-voltage-storage-false-flag-power-cycle fill:#dcfce7,stroke:#22c55e,color:#14532d Hover or focus a block to preview it. Select the block to keep the preview open.
1 telemetry
Load the failed mission into the Supercap ESR Baraza template. Enter the mission ID; the template should load automatically.
Enter the mission identifier above to load the plot.
2 question
Are any Supercap ESR values below 0.2 but above 0.05?
3 action
This is an example of a Supercap ESR failure caused by outdated thresholds. Power cycle the Aircraft using Power Cycle Aircraft, then return it to service.
4 question
Are any Supercap ESR values greater than 0.74 and less than 0.90?
5 action
This is a Supercap ESR failure caused by outdated thresholds. The new maximum threshold is 0.90. Power cycle the Aircraft using Power Cycle Aircraft, then return it to service.
6 question

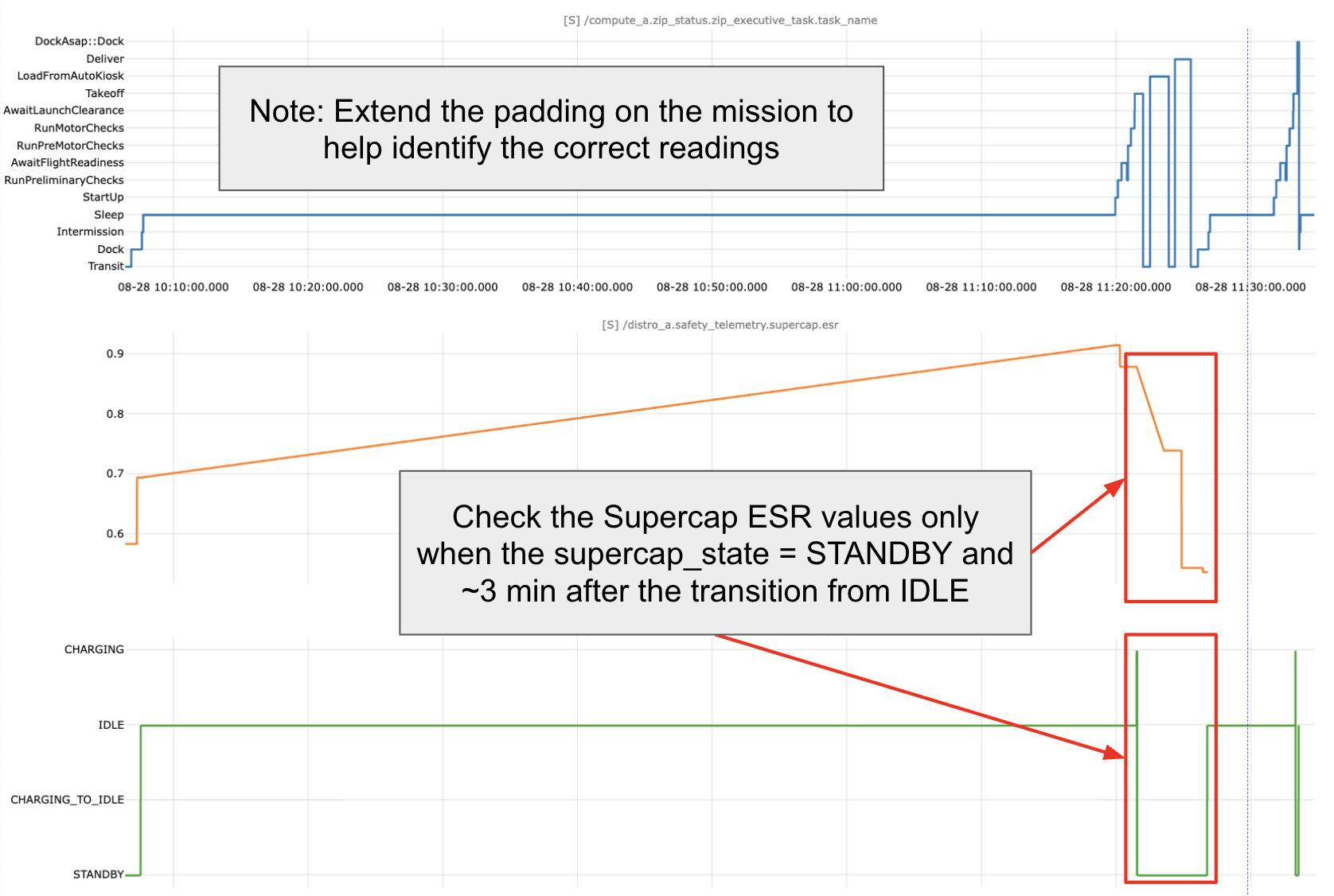

Check the Supercap ESR values 3 minutes after the
Note: it can be helpful to add padding (~6000+ seconds) to compare the results from previous missions as well.
supercap_esr state = STANDBY. Are the Supercap ESR values within a nominal range (0.05 - 0.90)?Note: it can be helpful to add padding (~6000+ seconds) to compare the results from previous missions as well.
7 action
Replace Distro assembly on Aircraft using Template 646 EV3: Replace Zip Distribution Board (ZDB) on Aircraft. Deliver removed ZDB to Logistics lead to be returned to Bolaji Bankole.
8 action
This is a false flag due to a trigger during low-voltage state. Power cycle the Aircraft using Power Cycle Aircraft, then return it to service.
