    MIXED_ROTOR_SLIP_SUSPECTED

    published Last Updated: Oct 9, 2026 HW: all
    Applicable alarms (1)
    MIXED_ROTOR_SLIP_SUSPECTED
    Likely outcomes (0 missions) — click to expand

    Based on 0 missions where this alarm fired in the last 90 days as of 2026-10-13

    Aggregated from fleet operations and refreshed daily. Individual outcomes may vary by site and configuration.

    Background

    Section titled “Background”

    This alarm triggers when mixed motor rotor slip is suspected, meaning the motor rotor debonds from the housing and causes freewheeling due to a lack of adhesion.

    This issue can be identified in logs by looking for instances where motor speed (omega) deviates from commanded torque (torque).

    Reference Examples

    Section titled “Reference Examples”

    Confirmed rotor slip example

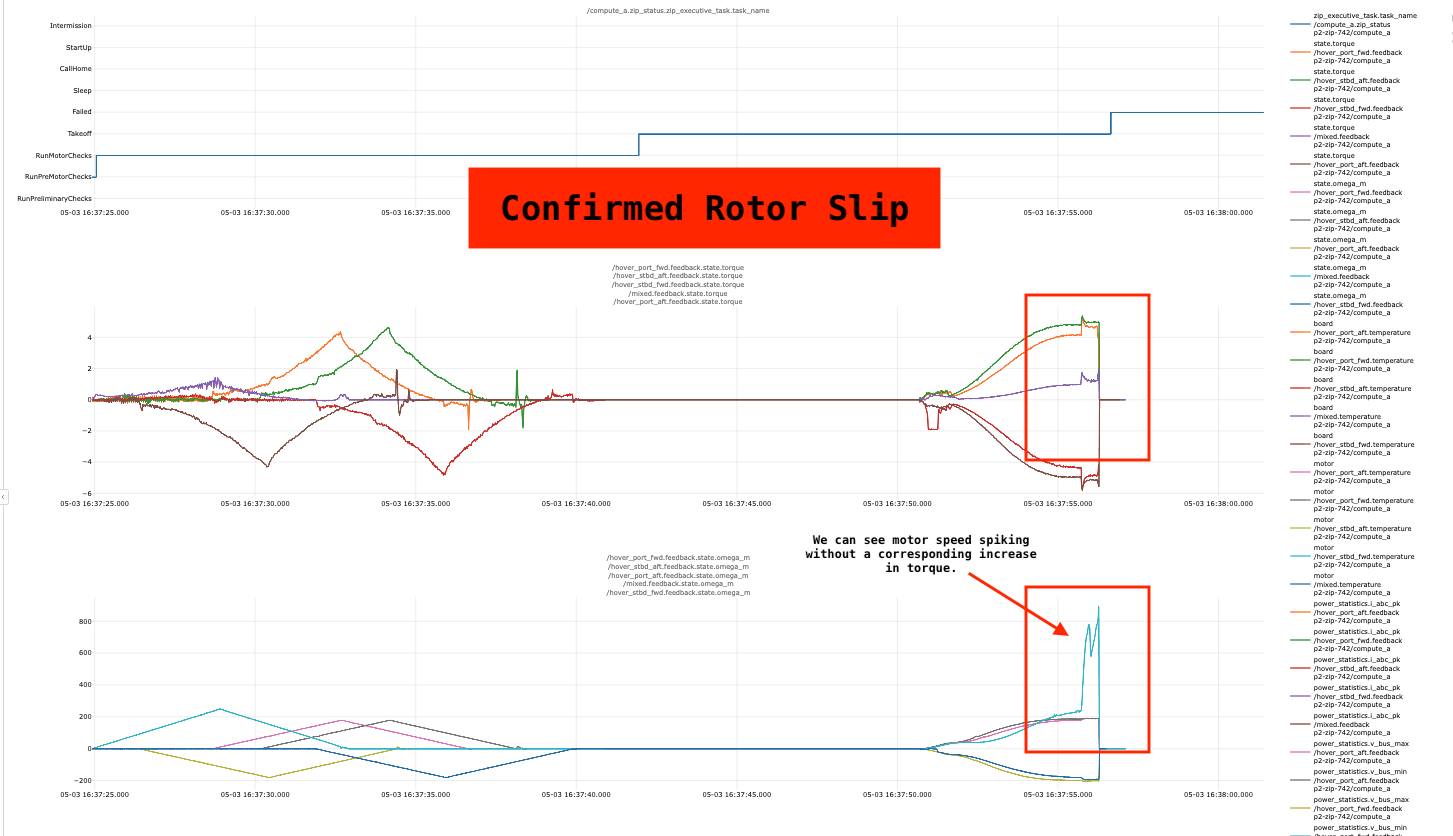

    Confirmed mixed rotor slip example

    No rotor slip example

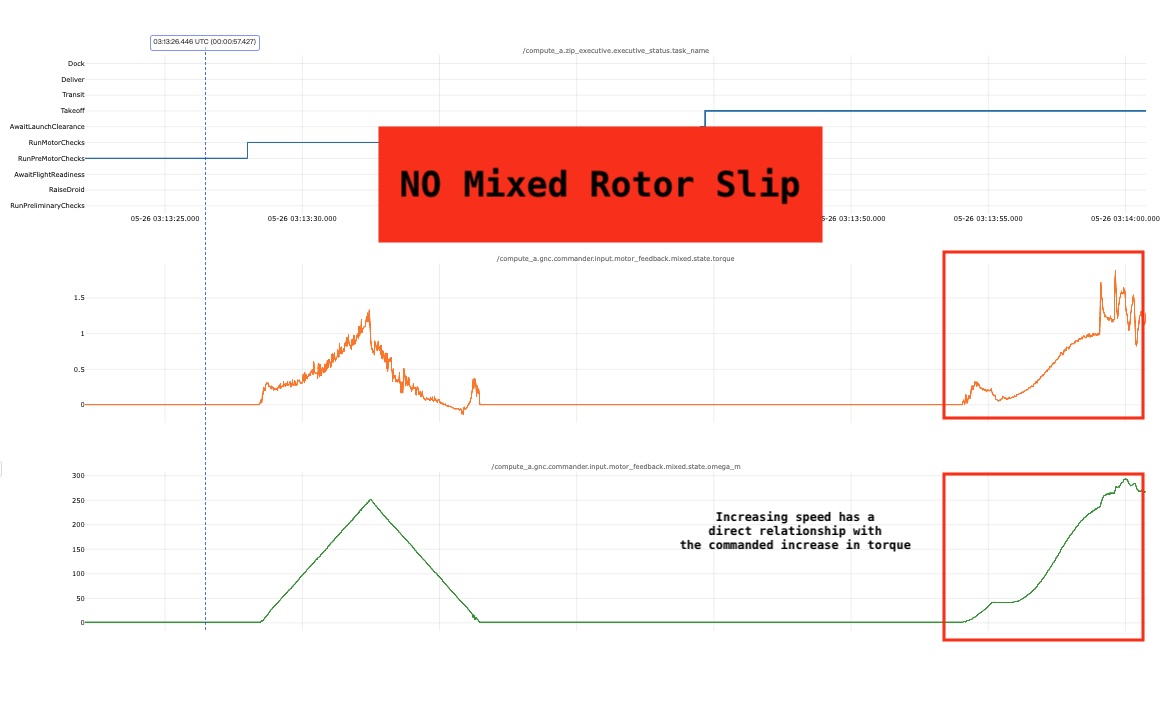

    No mixed rotor slip example

    Troubleshooting Steps

    Section titled “Troubleshooting Steps”
    1 telemetry
    Enter the failed mission ID to load the Mixed Rotor Slip Suspected plot. It includes task_name, mixed feedback state omega, and mixed feedback state torque.

    Paste the mission identifier from the alarm report. The mixed-rotor-slip-suspected plot loads in place below.

    Enter the mission identifier above to load the plot.
