Section titled “Background”This alarm occurs when winch GNC does not recognize the version of the installed winch motor.
Troubleshooting Steps
Section titled “Troubleshooting Steps”graph TD
is-the-winch-motor-disabled-alarm-prese{"<small><b>Step 1</b></small><br/>Question: Is the WINCH_MOTOR_DISABLED/topics..."}
refer-to-the-guide-for-winch-motor-dis("<small><b>Step 2</b></small><br/>Reference: Refer to the guide for WINCH_MOTOR_D...")
switch-to-winch-motor-disabled-check-co["<small><b>Step 3</b></small><br/>Action: Switch to the WINCH MOTOR DISABLED -..."]
check-for-a-gap-on-the-top-plot-but-not["<small><b>Step 4</b></small><br/>Action: Check for a data gap on the top plot,..."]
are-these-conditions-met{"<small><b>Step 5</b></small><br/>Question: Are these conditions met? **NOTE**: T..."}
escalate-to-p2-embedded-platform-on-cal{{"<small><b>Step 6</b></small><br/>Escalation: Escalate to P2 Embedded Platform On C..."}}
escalate-to-p2-droid-controls-on-call{{"<small><b>Step 7</b></small><br/>Escalation: Escalate to P2 Droid Controls On Call."}}
is-the-winch-motor-disabled-alarm-prese -->|Yes| refer-to-the-guide-for-winch-motor-dis
is-the-winch-motor-disabled-alarm-prese -->|No| switch-to-winch-motor-disabled-check-co
switch-to-winch-motor-disabled-check-co --> check-for-a-gap-on-the-top-plot-but-not
check-for-a-gap-on-the-top-plot-but-not --> are-these-conditions-met
are-these-conditions-met -->|Yes| escalate-to-p2-embedded-platform-on-cal
are-these-conditions-met -->|No| escalate-to-p2-droid-controls-on-call
style is-the-winch-motor-disabled-alarm-prese fill:#dbeafe,stroke:#3b82f6,color:#1e3a5f
style refer-to-the-guide-for-winch-motor-dis fill:#f3e8ff,stroke:#a855f7,color:#581c87
style switch-to-winch-motor-disabled-check-co fill:#dcfce7,stroke:#22c55e,color:#14532d
style check-for-a-gap-on-the-top-plot-but-not fill:#dcfce7,stroke:#22c55e,color:#14532d
style are-these-conditions-met fill:#dbeafe,stroke:#3b82f6,color:#1e3a5f
style escalate-to-p2-embedded-platform-on-cal fill:#fef3c7,stroke:#f59e0b,color:#78350f
style escalate-to-p2-droid-controls-on-call fill:#fef3c7,stroke:#f59e0b,color:#78350f Hover or focus a block to preview it. Select the block to keep the preview open.
1 question
Is the WINCH_MOTOR_DISABLED alarm present?
2 reference
Refer to the guide for WINCH_MOTOR_DISABLED
3 action
Switch to the
WINCH MOTOR DISABLED - Check compute b->a connection Baraza template with 30s of padding. 4 action
Check for a data gap on the top plot, with no matching gap on the middle plot, that lines up with the WINCH_MOTOR_TYPE_UNKNOWN signal on the bottom plot being true.
5 question
Are these conditions met?

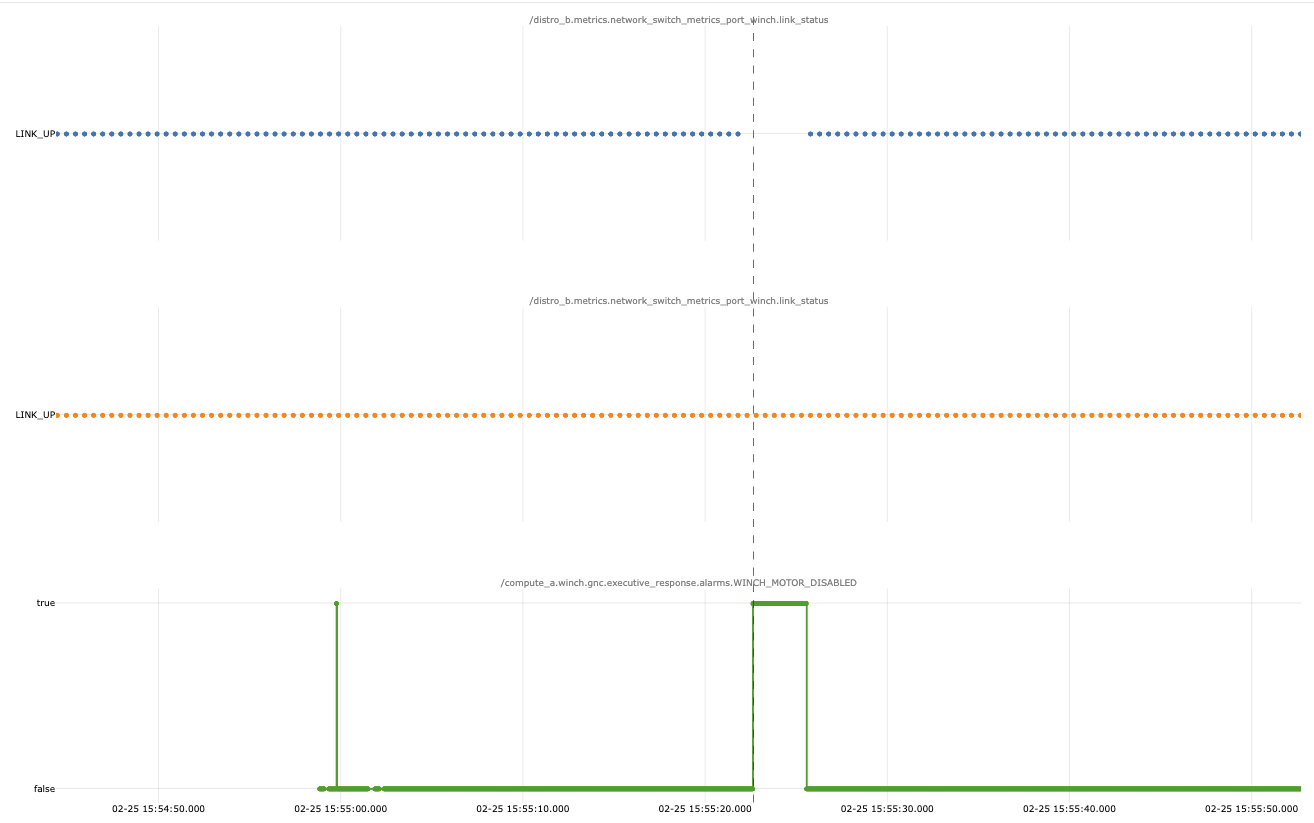

NOTE: The plot below is an example of the conditions being met. This example is shared with the WINCH_MOTOR_DISABLED guide because both checks use the same Baraza template.
NOTE: The plot below is an example of the conditions being met. This example is shared with the WINCH_MOTOR_DISABLED guide because both checks use the same Baraza template.
6 escalation
Escalate to P2 Embedded Platform On Call.
7 escalation
Escalate to P2 Droid Controls On Call.
