Motor DC Powerline Resistance Validator
Viewing this guide for
Applicable alarms (1)
power_line_resistance
Likely outcomes — click to expand
Based on 0 missions where this alarm fired in the last 90 days as of 2026-10-13
Aggregated from fleet operations and refreshed daily. Individual outcomes may vary by site and configuration.
Background
Section titled “Background”You were directed to this page by the high resistance validator. The zip number and name of the failing validator will instruct you which of the following busbars to inspect. There could be multiple that failed within a single flight; please inspect all busbar regions that had a validator failure.
Troubleshooting steps for Zip 524 and earlier
Section titled “Troubleshooting steps for Zip 524 and earlier”graph TD
identify-the-location-of-the-resistance{"<small><b>Step 1</b></small><br/>Question: Identify the location of the resistan..."}
if-power-line-resistance-hover-port-fwd["<small><b>Step 2</b></small><br/>Action: If power_line_resistance/hover_port_..."]
if-power-line-resistance-hover-port-aft["<small><b>Step 3</b></small><br/>Action: If power_line_resistance/hover_port_..."]
if-power-line-resistance-hover-stbd-fwd["<small><b>Step 4</b></small><br/>Action: If power_line_resistance/hover_stbd_..."]
if-power-line-resistance-hover-stbd-aft["<small><b>Step 5</b></small><br/>Action: If power_line_resistance/hover_stbd_..."]
if-power-line-resistance-mixed-failed-f["<small><b>Step 6</b></small><br/>Action: If power_line_resistance/mixed fail..."]
identify-the-location-of-the-resistance -->|power_line_resistance/hove...| if-power-line-resistance-hover-port-fwd
identify-the-location-of-the-resistance -->|power_line_resistance/hove...| if-power-line-resistance-hover-port-aft
identify-the-location-of-the-resistance -->|power_line_resistance/hove...| if-power-line-resistance-hover-stbd-fwd
identify-the-location-of-the-resistance -->|power_line_resistance/hove...| if-power-line-resistance-hover-stbd-aft
identify-the-location-of-the-resistance -->|power_line_resistance/mixe...| if-power-line-resistance-mixed-failed-f
style identify-the-location-of-the-resistance fill:#dbeafe,stroke:#3b82f6,color:#1e3a5f
style if-power-line-resistance-hover-port-fwd fill:#dcfce7,stroke:#22c55e,color:#14532d
style if-power-line-resistance-hover-port-aft fill:#dcfce7,stroke:#22c55e,color:#14532d
style if-power-line-resistance-hover-stbd-fwd fill:#dcfce7,stroke:#22c55e,color:#14532d
style if-power-line-resistance-hover-stbd-aft fill:#dcfce7,stroke:#22c55e,color:#14532d
style if-power-line-resistance-mixed-failed-f fill:#dcfce7,stroke:#22c55e,color:#14532d Hover or focus a block to preview it. Select the block to keep the preview open.
1 question
Identify the location of the resistance failure and follow the corresponding guide:
2 action
If
power_line_resistance/hover_port_fwd failed, follow ERROR_HOVER_PORT_FWD_RESISTANCE. 3 action
If
power_line_resistance/hover_port_aft failed, follow ERROR_HOVER_PORT_AFT_RESISTANCE. 4 action
If
power_line_resistance/hover_stbd_fwd failed, follow ERROR_HOVER_STBD_FWD_RESISTANCE. 5 action
If
power_line_resistance/hover_stbd_aft failed, follow ERROR_HOVER_STBD_AFT_RESISTANCE. 6 action
If
power_line_resistance/mixed failed, follow ERROR_MIXED_MOTOR_RESISTANCE.Resolution note
This plaintext block is ready to paste into the Resolution Note field on the ZERP issue you're working. The permalink below gives engineering review access to the full step-by-step timeline including any back-navigation; share it if the case needs a deeper look.
Permalink:
Session is too large to fit in a URL. Use Download session JSON to share the timeline out-of-band.
Troubleshooting steps for Zip 525 and later
Section titled “Troubleshooting steps for Zip 525 and later”graph TD
navigate-to-the-validator-description-fi["<small><b>Step 1</b></small><br/>Action: Navigate to the validator description..."]
follow-the-applicable-guide-below{"<small><b>Step 2</b></small><br/>Question: Follow the applicable guide below:"}
the-faulting-motor-is-a-mixed-motor["<small><b>Step 3</b></small><br/>Action: power_line_resistance/mixed: Follow..."]
is-the-max-resistance-value-for-the-fli{"<small><b>Step 4</b></small><br/>Question: Is the MAX RESISTANCE value for the f..."}
fwd-hover-yes-follow-the-applicable-gui("<small><b>Step 5</b></small><br/>Reference: Follow the applicable guide: - power...")
fwd-hover-no-disregard-the-failing-vali["<small><b>Step 6</b></small><br/>Action: Disregard the failing validator."]
is-the-max-resistance-value-for-the-fli-2{"<small><b>Step 7</b></small><br/>Question: Is the MAX RESISTANCE value for the f..."}
aft-hover-yes-follow-the-applicable-gui("<small><b>Step 8</b></small><br/>Reference: Follow the applicable guide: - power...")
aft-hover-no-disregard-the-failing-vali["<small><b>Step 9</b></small><br/>Action: Disregard the failing validator."]
navigate-to-the-validator-description-fi --> follow-the-applicable-guide-below
follow-the-applicable-guide-below -->|The faulting motor is a mix...| the-faulting-motor-is-a-mixed-motor
follow-the-applicable-guide-below -->|The faulting motor is a FWD...| is-the-max-resistance-value-for-the-fli
follow-the-applicable-guide-below -->|The faulting motor is an AF...| is-the-max-resistance-value-for-the-fli-2
is-the-max-resistance-value-for-the-fli -->|Yes| fwd-hover-yes-follow-the-applicable-gui
is-the-max-resistance-value-for-the-fli -->|No, the MAX RESISTANCE valu...| fwd-hover-no-disregard-the-failing-vali
is-the-max-resistance-value-for-the-fli-2 -->|Yes| aft-hover-yes-follow-the-applicable-gui
is-the-max-resistance-value-for-the-fli-2 -->|No, the MAX RESISTANCE valu...| aft-hover-no-disregard-the-failing-vali
style navigate-to-the-validator-description-fi fill:#dcfce7,stroke:#22c55e,color:#14532d
style follow-the-applicable-guide-below fill:#dbeafe,stroke:#3b82f6,color:#1e3a5f
style the-faulting-motor-is-a-mixed-motor fill:#dcfce7,stroke:#22c55e,color:#14532d
style is-the-max-resistance-value-for-the-fli fill:#dbeafe,stroke:#3b82f6,color:#1e3a5f
style fwd-hover-yes-follow-the-applicable-gui fill:#f3e8ff,stroke:#a855f7,color:#581c87
style fwd-hover-no-disregard-the-failing-vali fill:#dcfce7,stroke:#22c55e,color:#14532d
style is-the-max-resistance-value-for-the-fli-2 fill:#dbeafe,stroke:#3b82f6,color:#1e3a5f
style aft-hover-yes-follow-the-applicable-gui fill:#f3e8ff,stroke:#a855f7,color:#581c87
style aft-hover-no-disregard-the-failing-vali fill:#dcfce7,stroke:#22c55e,color:#14532d Hover or focus a block to preview it. Select the block to keep the preview open.
2 question
Follow the applicable guide below:
3 action
power_line_resistance/mixed: Follow this guide: ERROR_MIXED_MOTOR_RESISTANCE. 4 question
Is the MAX RESISTANCE value for the flight greater than 0.0187?
5 reference
Follow the applicable guide:
-
-
-
power_line_resistance/hover_port_fwd -> ERROR_HOVER_PORT_FWD_RESISTANCE.-
power_line_resistance/hover_stbd_fwd -> ERROR_HOVER_STBD_FWD_RESISTANCE. 6 action
Disregard the failing validator.
7 question
Is the MAX RESISTANCE value for the flight greater than 0.0165?
8 reference
Follow the applicable guide:
-
-
-
power_line_resistance/hover_port_aft -> ERROR_HOVER_PORT_AFT_RESISTANCE.-
power_line_resistance/hover_stbd_aft -> ERROR_HOVER_STBD_AFT_RESISTANCE. 9 action
Disregard the failing validator.
Notes:
Section titled “Notes:”- Zip 524 and earlier include zip-473, 524, 500
- Zip 525 and later include zip-600, 582, 664
- If confused on directions, please connect with P2 Busbars On Call

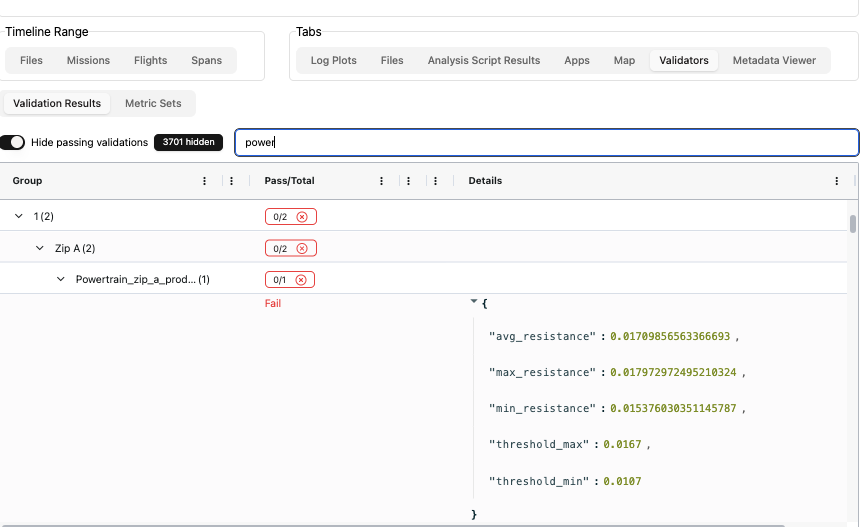

Screenshot of validator data from Baraza
