Power OFF Droid
Viewing this guide for
Power OFF Droid Using FleetWrangler
Section titled “Power OFF Droid Using FleetWrangler”graph TD
navigate-to-aircraft-page["<small><b>Step 1</b></small><br/>Action: In FleetWrangler, navigate to the Air..."]
is-aircraft-in-diagnostic-mode{"<small><b>Step 2</b></small><br/>Question: Is the Aircraft in Diagnostic Mode v..."}
switch-to-standard-mode["<small><b>Step 3</b></small><br/>Action: Click the **Operations Mode** box on ..."]
is-aircraft-still-in-diagnostic-mode{"<small><b>Step 4</b></small><br/>Question: Is the Aircraft still in Diagnostic M..."}
escalate-diagnostic-mode{{"<small><b>Step 5</b></small><br/>Escalation: If the Aircraft is still in Diagnosti..."}}
click-troubleshooting-commands["<small><b>Step 6</b></small><br/>Action: Click **Troubleshooting commands**. !..."]
select-droid-power-off["<small><b>Step 7</b></small><br/>Action: Select **Droid Power Off** and click ..."]
wait-for-command-success["<small><b>Step 8</b></small><br/>Action: In the **Recent Commands** section, w..."]
navigate-to-aircraft-page --> is-aircraft-in-diagnostic-mode
is-aircraft-in-diagnostic-mode -->|Yes| switch-to-standard-mode
is-aircraft-in-diagnostic-mode -->|No| click-troubleshooting-commands
switch-to-standard-mode --> is-aircraft-still-in-diagnostic-mode
is-aircraft-still-in-diagnostic-mode -->|Yes| escalate-diagnostic-mode
is-aircraft-still-in-diagnostic-mode -->|No| click-troubleshooting-commands
click-troubleshooting-commands --> select-droid-power-off
select-droid-power-off --> wait-for-command-success
style navigate-to-aircraft-page fill:#dcfce7,stroke:#22c55e,color:#14532d
style is-aircraft-in-diagnostic-mode fill:#dbeafe,stroke:#3b82f6,color:#1e3a5f
style switch-to-standard-mode fill:#dcfce7,stroke:#22c55e,color:#14532d
style is-aircraft-still-in-diagnostic-mode fill:#dbeafe,stroke:#3b82f6,color:#1e3a5f
style escalate-diagnostic-mode fill:#fef3c7,stroke:#f59e0b,color:#78350f
style click-troubleshooting-commands fill:#dcfce7,stroke:#22c55e,color:#14532d
style select-droid-power-off fill:#dcfce7,stroke:#22c55e,color:#14532d
style wait-for-command-success fill:#dcfce7,stroke:#22c55e,color:#14532d Hover or focus a block to preview it. Select the block to keep the preview open.
2 question
Is the Aircraft in Diagnostic Mode (visible in the top left corner)?
3 action
Click the Operations Mode box on the left.
Select Standard.
Click Submit.
Wait for ~1 minute for the operations mode to change.
Select Standard.
Click Submit.
Wait for ~1 minute for the operations mode to change.
4 question
Is the Aircraft still in Diagnostic Mode?
5 escalation
If the Aircraft is still in Diagnostic Mode after waiting at least one (1) minute, escalate to P2 Exec On Call.
6 action
Click Troubleshooting commands.
7 action

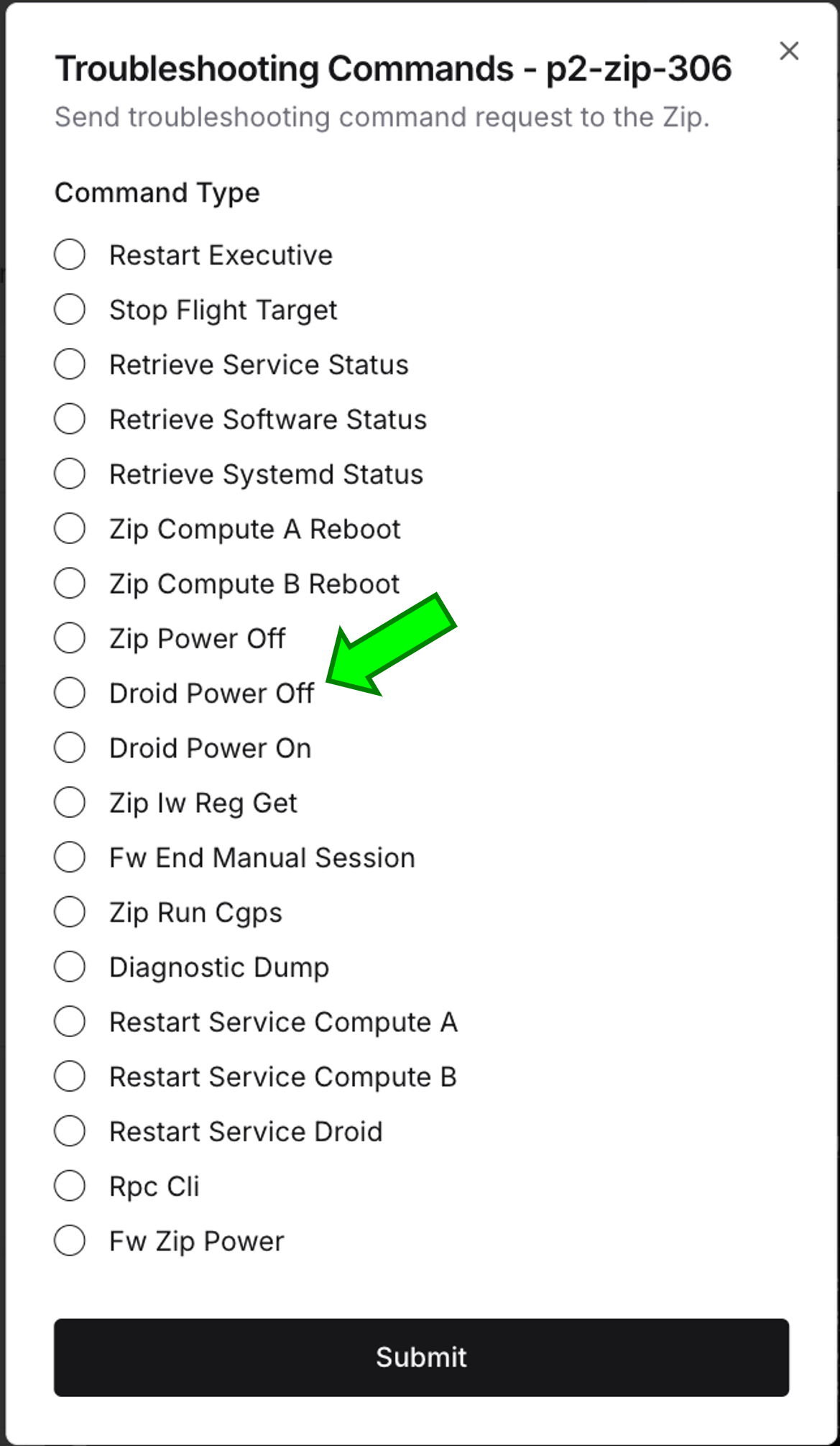

Select Droid Power Off and click Submit.
8 action

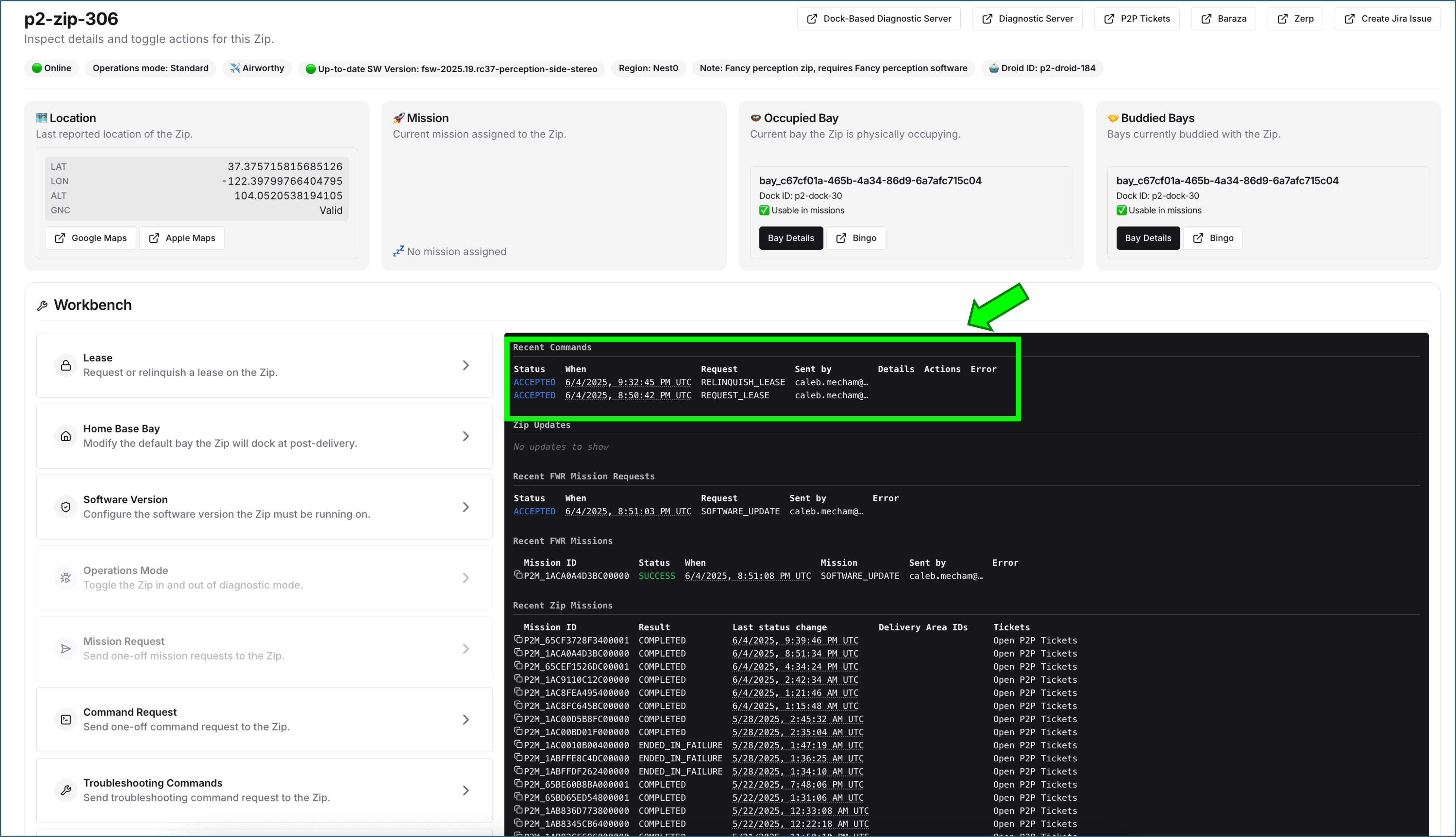

In the Recent Commands section, wait for the command to indicate success.
Resolution note
This plaintext block is ready to paste into the Resolution Note field on the ZERP issue you're working. The permalink below gives engineering review access to the full step-by-step timeline including any back-navigation; share it if the case needs a deeper look.
Permalink:
Session is too large to fit in a URL. Use Download session JSON to share the timeline out-of-band.
Power OFF Droid Using Compute
Section titled “Power OFF Droid Using Compute”- SSH into a compute.
fw-zip-power -i enP8p1s0 disable-droid-powerdroid-battery-cli -i fe80::62%enP8p1s0 power-off
Power OFF Droid Using Smart Cart
Section titled “Power OFF Droid Using Smart Cart”- SSH into the smart cart.
fw-zip-power -i enp3s0 disable-droid-powerdroid-battery-cli -i fe80::62%enp3s0 power-off
CAUTION: If power cycling, wait two minutes before powering back on.
