Background
Section titled “Background”The cause is usually “a single jaw case.” Single jaw latching is when the Aircraft autonomously docks but only one of the latch jaws closes around the fin. The Dock does not accept this as a valid latched state, however there is no danger of the Aircraft falling out of the Dock. It simply means that it cannot retract automatically.
Another possible cause is failed communication between the Aircraft and the Dock. This is usually caused by a poor hardware connection somewhere between the Aircraft compute, distro, pins/sockets, and fin assembly.
Troubleshooting Steps
Section titled “Troubleshooting Steps”graph TD
confirm-that-this-is-a-single-jaw-case["<small><b>Step 1</b></small><br/>Action: Confirm that this is a single jaw cas..."]
is-single-jaw-case{"<small><b>Step 2</b></small><br/>Question: After the Aircraft docks control_mo..."}
single-jaw-case-follow-steps["<small><b>Step 3</b></small><br/>Action: This is a single jaw case. Use the **..."]
is-zip-detected-true-or-false{"<small><b>Step 4</b></small><br/>Question: Is zip_detected true or false?"}
follow-dock-not-communicating-with-aircr["<small><b>Step 5</b></small><br/>Action: Follow Dock Not Communicating with A..."]
is-hall-sensor-mv-between-1050-and-1900{"<small><b>Step 6</b></small><br/>Question: Is hall_sensor_mv between 1050 mV a..."}
dock-latch-hardware-swap-required["<small><b>Step 7</b></small><br/>Action: This requires a Dock latch hardware s..."]
double-check-latch-state-empty["<small><b>Step 8</b></small><br/>Action: 1. Double check that the latch state ..."]
confirm-that-this-is-a-single-jaw-case --> is-single-jaw-case
is-single-jaw-case -->|Yes| single-jaw-case-follow-steps
is-single-jaw-case -->|No| is-zip-detected-true-or-false
is-zip-detected-true-or-false -->|zip_detected = TRUE| is-hall-sensor-mv-between-1050-and-1900
is-zip-detected-true-or-false -->|zip_detected = FALSE| follow-dock-not-communicating-with-aircr
is-hall-sensor-mv-between-1050-and-1900 -->|Yes| dock-latch-hardware-swap-required
is-hall-sensor-mv-between-1050-and-1900 -->|No| double-check-latch-state-empty
style confirm-that-this-is-a-single-jaw-case fill:#dcfce7,stroke:#22c55e,color:#14532d
style is-single-jaw-case fill:#dbeafe,stroke:#3b82f6,color:#1e3a5f
style single-jaw-case-follow-steps fill:#dcfce7,stroke:#22c55e,color:#14532d
style is-zip-detected-true-or-false fill:#dbeafe,stroke:#3b82f6,color:#1e3a5f
style follow-dock-not-communicating-with-aircr fill:#dcfce7,stroke:#22c55e,color:#14532d
style is-hall-sensor-mv-between-1050-and-1900 fill:#dbeafe,stroke:#3b82f6,color:#1e3a5f
style dock-latch-hardware-swap-required fill:#dcfce7,stroke:#22c55e,color:#14532d
style double-check-latch-state-empty fill:#dcfce7,stroke:#22c55e,color:#14532d Hover or focus a block to preview it. Select the block to keep the preview open.
1 action
Confirm that this is a single jaw case.
Use the baraza LogPlots template "Dock Latch EMPTY" on the applicable Mission ID.
Use the baraza LogPlots template "Dock Latch EMPTY" on the applicable Mission ID.
2 question
After the Aircraft docks (
control_mode is IDLE), is the hall_sensor_mv value >1900 mV AND is zip_detected set to TRUE? 3 action
This is a single jaw case. Use the Single Jaw Troubleshooting section below.

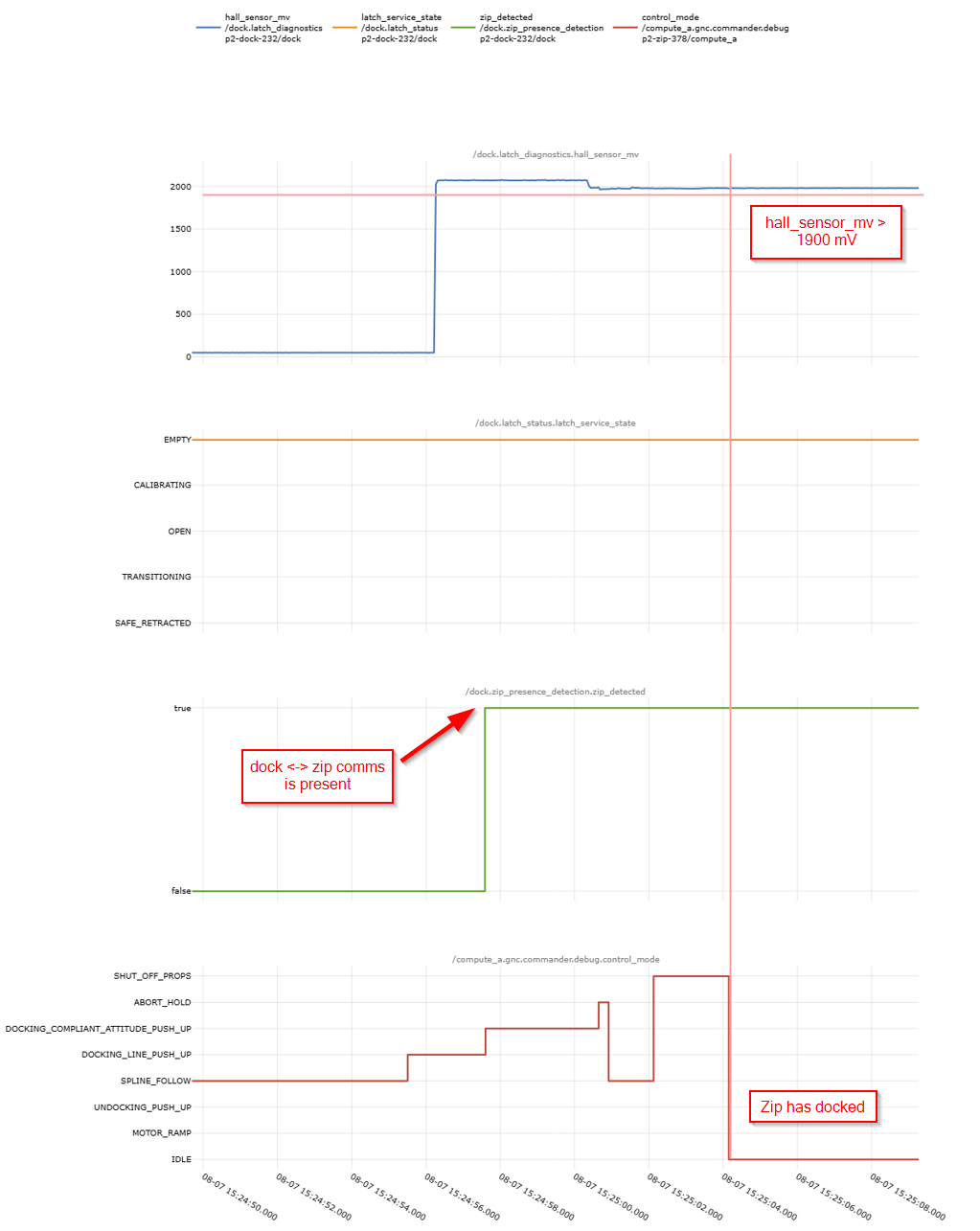

The log plot output should look like this:
The log plot output should look like this:
4 question
Is
zip_detected true or false? 5 action
6 question
Is
hall_sensor_mv between 1050 mV and 1900 mV? 7 action
This requires a Dock latch hardware swap.
- Create a discrepancy against the dock and create an ISS ticket in the discrepancy.
- Remove the Aircraft from the Dock.
- As applicable, use a scissor lift or similar to get close to the Dock. If no scissor lift available, the tower will have to be lowered to remove the zip.
NOTE: It is recommended to have two operators supporting the Aircraft when removing it from the latch. - Send a Latch Open command. For steps, see Actuate Latch Commands to open the latch and release the Aircraft.
CAUTION: Ensure that the Aircraft is sufficiently supported prior to issuing this command.
- As applicable, use a scissor lift or similar to get close to the Dock. If no scissor lift available, the tower will have to be lowered to remove the zip.
8 action
1. Double check that the latch state is actually in EMPTY at the timestamp that
2. Escalate to P2 Dock Embedded On Call.
hall_sensor_mv is < 1050 mV and zip_detected is true.2. Escalate to P2 Dock Embedded On Call.
Resolution note
This plaintext block is ready to paste into the Resolution Note field on the ZERP issue you're working. The permalink below gives engineering review access to the full step-by-step timeline including any back-navigation; share it if the case needs a deeper look.
Permalink:
Session is too large to fit in a URL. Use Download session JSON to share the timeline out-of-band.
Single Jaw Troubleshooting
Section titled “Single Jaw Troubleshooting” 1 action
Create a Discrepancy on the Dock.
2 action
Perform a visual check to see that the Aircraft is not retracted (there is a visible gap between the Aircraft and the Dock).
3 action
Confirm that the latch state is
LATCH_SERVICE_STATE_EMPTY. Check the hall-effect sensor for a delayed retained state: if the hall-effect sensor is high while the latch state has been EMPTY for more than 8 seconds, note this in the Dock discrepancy before continuing. 4 action
Manually attempt to latch the second jaw:
- As applicable, use a scissor lift or similar to get close to the Dock. If no scissor lift available, you may use a sufficiently long pole.
- Push on the Aircraft center body to close the other latch.
- In Fleet wrangler, check the Dock's Detailed Dock Status and that the latch service state reads
LATCH_SERVICE_STATE_RETAINED. This means that the Aircraft is fully in the latch. - Send a latch retract command. For steps, see Actuate Latch Commands.
5 question
Is the issue resolved?
6 action
The Dock and the Aircraft may return to service.
7 action
Remove the Aircraft from the Dock and re-insert it:
- As applicable, use a scissor lift or similar to get close to the Dock. If no scissor lift available, the tower will have to be lowered to remove the zip.
NOTE: It is recommended to have two operators supporting the Aircraft when removing it from the latch. - Send a Latch Open command. For steps, see Actuate Latch Commands to open the latch and release the Aircraft.
CAUTION: Ensure that the Aircraft is sufficiently supported prior to issuing this command. - Re-insert the Aircraft into the Dock.
- In Fleet wrangler, check the Dock's Detailed Dock Status and confirm that the latch service state reads
LATCH_SERVICE_STATE_RETAINED. - Send a latch retract command. For steps, see Actuate Latch Commands.
8 action
After the aircraft is successfully retracted, resolve the discrepancy on the Dock.
9 question
Is the issue resolved?
10 action
The Dock and the Aircraft may return to service.
11 escalation
Escalate to P2 Dock Hardware On Call.
