STORAGE_SPACE_NEARING_CAPACITY
Viewing this guide for
Applicable alarms (1)
STORAGE_SPACE_NEARING_CAPACITY
Likely outcomes — click to expand
Based on 23 missions where this alarm fired in the last 90 days as of 2026-10-13
Grounding vs discrepancy (of 1 ZERP issues filed on these missions)
Frequently replaced parts
| Part | P/N | Removals |
|---|---|---|
| BATTERY ASSY, ZIP, P2 | 27158 | 8 |
Frequently co-occurring alarms (% of the 23 missions above)
Aggregated from fleet operations and refreshed daily. Individual outcomes may vary by site and configuration.
Background
Section titled “Background”One of the Orin\u2019s SSD if close to be full, to avoid losing logs, this alarm will fail pre-flight and trigger dock-asap.
Troubleshooting Steps
Section titled “Troubleshooting Steps”graph TD
put-the-aircraft-to-sleep["<small><b>Step 1</b></small><br/>Action: Put the Aircraft to Sleep. Use the **..."]
alarm-will-be-set-when-any-of-the-disk["<small><b>Step 2</b></small><br/>Action: **Alarm will be set when any of the d..."]
does-the-dock-have-internet-connectivit{"<small><b>Step 3</b></small><br/>Question: Does the dock have internet connectiv..."}
proceed-to-this-playbook-entry-asset-of["<small><b>Step 4</b></small><br/>Action: Proceed to this playbook entry: Asse..."]
wait-20min-and-confirm-the-volume-of-lo{"<small><b>Step 5</b></small><br/>Question: Wait 20min. Is the volume of log decr..."}
let-the-log-offload-until-volume-under["<small><b>Step 6</b></small><br/>Action: Let the log offload until volume unde..."]
if-there-is-no-known-site-internet-outa{{"<small><b>Step 7</b></small><br/>Escalation: If there is no known site internet ou..."}}
put-the-aircraft-to-sleep --> alarm-will-be-set-when-any-of-the-disk
alarm-will-be-set-when-any-of-the-disk --> does-the-dock-have-internet-connectivit
does-the-dock-have-internet-connectivit -->|Yes| wait-20min-and-confirm-the-volume-of-lo
does-the-dock-have-internet-connectivit -->|No| proceed-to-this-playbook-entry-asset-of
wait-20min-and-confirm-the-volume-of-lo -->|Yes| let-the-log-offload-until-volume-under
wait-20min-and-confirm-the-volume-of-lo -->|No| if-there-is-no-known-site-internet-outa
style put-the-aircraft-to-sleep fill:#dcfce7,stroke:#22c55e,color:#14532d
style alarm-will-be-set-when-any-of-the-disk fill:#dcfce7,stroke:#22c55e,color:#14532d
style does-the-dock-have-internet-connectivit fill:#dbeafe,stroke:#3b82f6,color:#1e3a5f
style proceed-to-this-playbook-entry-asset-of fill:#dcfce7,stroke:#22c55e,color:#14532d
style wait-20min-and-confirm-the-volume-of-lo fill:#dbeafe,stroke:#3b82f6,color:#1e3a5f
style let-the-log-offload-until-volume-under fill:#dcfce7,stroke:#22c55e,color:#14532d
style if-there-is-no-known-site-internet-outa fill:#fef3c7,stroke:#f59e0b,color:#78350f Hover or focus a block to preview it. Select the block to keep the preview open.
1 action
Put the Aircraft to Sleep.
Use the Stop Flight Target troubleshooting command (How to Use Troubleshooting Commands).
NOTE: Ensure the vehicle is in sleep mode before proceeding to the next step, It should show “zip executive task is
Use the Stop Flight Target troubleshooting command (How to Use Troubleshooting Commands).
NOTE: Ensure the vehicle is in sleep mode before proceeding to the next step, It should show “zip executive task is
Sleep.” 2 action
Alarm will be set when any of the disk are over 80% of usage (~140 GB)
Use fleet-debugger to get
This will be updated once the telemetry is available in fleet wrangler.
Use fleet-debugger to get
used_space_mb field in the ZipLogStatusThis will be updated once the telemetry is available in fleet wrangler.
3 question
Does the dock have internet connectivity? Check for the
NO_INTERNET_VIA_ETHERNET alarm on the dock. 4 action
Proceed to this playbook entry: Asset Offline Due To Comms/Provisioning Agent Error.
5 question
Wait 20min. Is the volume of log decreasing?
6 action
Let the log offload until volume under 100GB or below
Clear the discrepancy to return the aircraft to service.
Clear the discrepancy to return the aircraft to service.
7 escalation
If there is no known site internet outage, escalate to P2 Onboard Data Platform On Call.
Resolution note
This plaintext block is ready to paste into the Resolution Note field on the ZERP issue you're working. The permalink below gives engineering review access to the full step-by-step timeline including any back-navigation; share it if the case needs a deeper look.
Permalink:
Session is too large to fit in a URL. Use Download session JSON to share the timeline out-of-band.

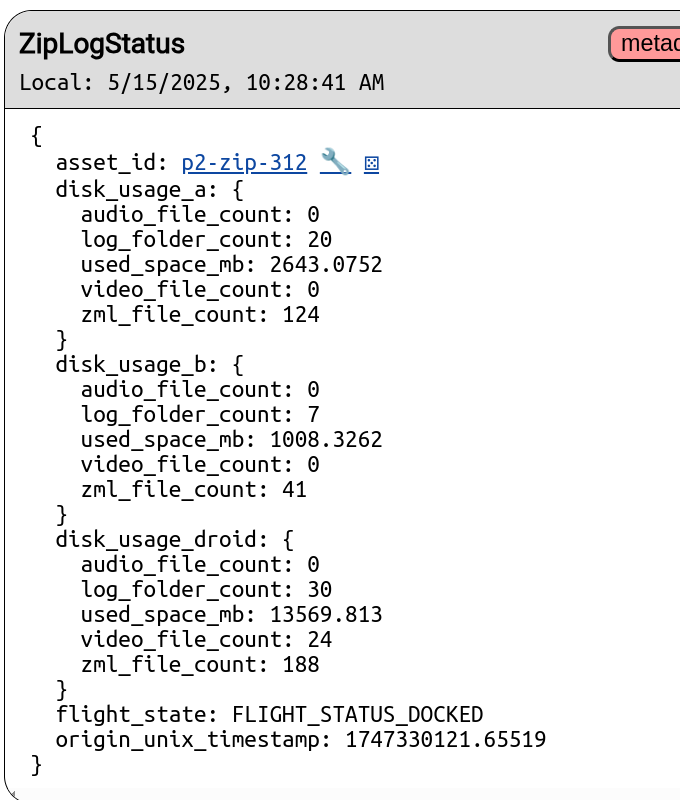

Example ZipLogStatus
Section titled “Example ZipLogStatus”Example low storage ZipLogStatus
{ asset_id: p2-zip-312 disk_usage_a: { audio_file_count: 0 log_folder_count: 20 used_space_mb: 2643.0752 video_file_count: 0 zml_file_count: 124 } disk_usage_b: { audio_file_count: 0 log_folder_count: 7 used_space_mb: 1008.3262 video_file_count: 0 zml_file_count: 41 } disk_usage_droid: { audio_file_count: 0 log_folder_count: 30 used_space_mb: 13569.813 video_file_count: 24 zml_file_count: 188 } flight_state: FLIGHT_STATUS_DOCKED origin_unix_timestamp: 1747330121.65519}Did this guide help you get unblocked?
