Site Power Outage
Viewing this guide for
Background
Section titled “Background”This guide covers specific troubleshooting steps to triage a site power outage.
Power is supplied to our sites in a generally linear fashion:
- Upstream utility or onsite generator
- Upstream-level distribution or upstream partner supply
- Onsite distribution
- Dock breakers to dock
To troubleshoot a suspected power issue, start at the top and work down to find the root cause. There are different actions to take at each step.
To confirm that all assets at a site are offline, use the site’s offline indicators.
Generator Power Sites
Section titled “Generator Power Sites”As of January 21, 2026, sites with generators are:
- Commercial Ops: Rowlett
- Test: NestZ for all power, Nest0 for backup power, NestV for all power
Troubleshooting Steps
Section titled “Troubleshooting Steps”graph TD
select-power-outage-path{"<small><b>Step 1</b></small><br/>Question: Which power outage path do you need?"}
is-the-generator-running-and-functional{"<small><b>Step 2</b></small><br/>Question: Is the generator running and function..."}
ask-local-team-generator-manual["<small><b>Step 3</b></small><br/>Action: Ask the local onsite team to perform ..."]
ask-local-team-generator-manual-breaker["<small><b>Step 4</b></small><br/>Action: Ask the local onsite team to perform ..."]
check-utility-outages["<small><b>Step 5</b></small><br/>Action: Check the local utility page for outa..."]
is-the-site-partner-or-zipline{"<small><b>Step 6</b></small><br/>Question: Is the site at a partner site that pr..."}
request-customer-support-partner["<small><b>Step 7</b></small><br/>Action: Request that Customer Support reach o..."]
organize-onsite-visit-zipline["<small><b>Step 8</b></small><br/>Action: Organize an onsite visit by the local..."]
have-any-onsite-breakers-tripped{"<small><b>Step 9</b></small><br/>Question: Have any onsite breakers tripped? :::..."}
record-tripped-breakers["<small><b>Step 10</b></small><br/>Action: Record the list of tripped breakers i..."]
reset-breakers["<small><b>Step 11</b></small><br/>Action: Reset the breakers. A tripped breaker..."]
is-the-issue-resolved{"<small><b>Step 12</b></small><br/>Question: Is the issue resolved?"}
resume-standard-operations["<small><b>Step 13</b></small><br/>Action: Resume standard operations."]
escalate-deeper-power-issue{{"<small><b>Step 14</b></small><br/>Escalation: Escalate to Jack Gaynor. There is a d..."}}
return-to-asset-offline-landing-page["<small><b>Step 15</b></small><br/>Action: Return to Asset Offline Troubleshooti..."]
select-power-outage-path -->|Generator power site| is-the-generator-running-and-functional
select-power-outage-path -->|Utility power site| check-utility-outages
select-power-outage-path -->|Onsite distribution| is-the-site-partner-or-zipline
is-the-generator-running-and-functional -->|Generator not running| ask-local-team-generator-manual
is-the-generator-running-and-functional -->|Generator running| ask-local-team-generator-manual-breaker
ask-local-team-generator-manual-breaker --> is-the-site-partner-or-zipline
check-utility-outages --> is-the-site-partner-or-zipline
is-the-site-partner-or-zipline -->|Partner site| request-customer-support-partner
is-the-site-partner-or-zipline -->|Zipline-managed site| organize-onsite-visit-zipline
request-customer-support-partner --> have-any-onsite-breakers-tripped
organize-onsite-visit-zipline --> have-any-onsite-breakers-tripped
have-any-onsite-breakers-tripped -->|Yes| record-tripped-breakers
have-any-onsite-breakers-tripped -->|No| escalate-deeper-power-issue
record-tripped-breakers --> reset-breakers
reset-breakers --> is-the-issue-resolved
is-the-issue-resolved -->|Yes| resume-standard-operations
is-the-issue-resolved -->|No| escalate-deeper-power-issue
style select-power-outage-path fill:#dbeafe,stroke:#3b82f6,color:#1e3a5f
style is-the-generator-running-and-functional fill:#dbeafe,stroke:#3b82f6,color:#1e3a5f
style ask-local-team-generator-manual fill:#dcfce7,stroke:#22c55e,color:#14532d
style ask-local-team-generator-manual-breaker fill:#dcfce7,stroke:#22c55e,color:#14532d
style check-utility-outages fill:#dcfce7,stroke:#22c55e,color:#14532d
style is-the-site-partner-or-zipline fill:#dbeafe,stroke:#3b82f6,color:#1e3a5f
style request-customer-support-partner fill:#dcfce7,stroke:#22c55e,color:#14532d
style organize-onsite-visit-zipline fill:#dcfce7,stroke:#22c55e,color:#14532d
style have-any-onsite-breakers-tripped fill:#dbeafe,stroke:#3b82f6,color:#1e3a5f
style record-tripped-breakers fill:#dcfce7,stroke:#22c55e,color:#14532d
style reset-breakers fill:#dcfce7,stroke:#22c55e,color:#14532d
style is-the-issue-resolved fill:#dbeafe,stroke:#3b82f6,color:#1e3a5f
style resume-standard-operations fill:#dcfce7,stroke:#22c55e,color:#14532d
style escalate-deeper-power-issue fill:#fef3c7,stroke:#f59e0b,color:#78350f
style return-to-asset-offline-landing-page fill:#dcfce7,stroke:#22c55e,color:#14532d Hover or focus a block to preview it. Select the block to keep the preview open.
1 question
Which power outage path do you need?
2 question
Is the generator running and functional?
This may require a site visit organized through the local Mx team.
This may require a site visit organized through the local Mx team.
3 action
Ask the local onsite team to perform the troubleshooting steps in the generator manual.
If the local onsite team is unable to return the generator to service, escalate to the generator rental company.
Commercial Ops: Noe Duran-Rivera
Test sites: your site lead
If the local onsite team is unable to return the generator to service, escalate to the generator rental company.
Commercial Ops: Noe Duran-Rivera
Test sites: your site lead
4 action
Ask the local onsite team to perform the troubleshooting steps in the generator manual, especially the steps related to the main output breaker.
If the generator is running, its main breaker is closed, and the local HMI indicates that the generator is providing voltage and current, click Continue to proceed with onsite distribution troubleshooting steps.
If the generator is running, its main breaker is closed, and the local HMI indicates that the generator is providing voltage and current, click Continue to proceed with onsite distribution troubleshooting steps.
5 action
Check the local utility page for outages.
- For Texas you can use this overview to see outages, but then you may need to go to the relevant Utility page to get a local map. Texas Power Outage Map, May 2026
- For DFW we'll generally be covered by Oncor - see Oncor - Outage Map
- If there is a local outage, wait for power to be restored.
- If there are no local outages, click Continue to proceed to the Onsite distribution troubleshooting steps.
6 question
Is the site at a partner site that provides power, or a Zipline-managed site?
7 action
Request that Customer Support reach out to the Partner Store Manager to confirm if the store is experiencing any power issues or if any breakers supplying our site are tripped.
If the Partner Store Manager does not see any issues, organize an onsite visit by the local Maintenance or Site Infratech teams to inspect the breakers onsite.
If the Partner Store Manager does not see any issues, organize an onsite visit by the local Maintenance or Site Infratech teams to inspect the breakers onsite.
8 action
Organize an onsite visit by the local Maintenance or Site Infratech teams to inspect the breakers onsite.
9 question
Have any onsite breakers tripped?
10 action
Record the list of tripped breakers in the ISS ticket.
11 action
Reset the breakers.

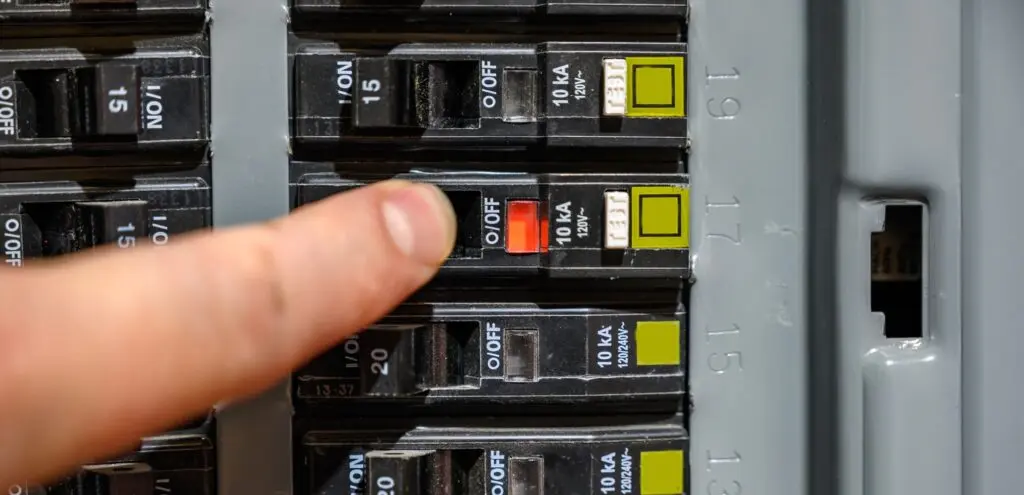

A tripped breaker switch will be halfway between ON and OFF.
1. Turn the breaker all the way OFF.
2. Turn the breaker ON.
A tripped breaker switch will be halfway between ON and OFF.
1. Turn the breaker all the way OFF.
2. Turn the breaker ON.
12 question
Is the issue resolved?
13 action
Resume standard operations.
14 escalation
Escalate to Jack Gaynor. There is a deeper level power issue that will require coordinated root cause investigation.
15 action
Return to Asset Offline Troubleshooting and continue with the next steps.
