High Resistance Inspection Locations
Viewing this guide for
Applicable to EV2 only.
Hover Motors
Section titled “Hover Motors”| Part Name | Hover Motor Location | Busbar to Distro Board (Power Distribution Board) |
|---|---|---|

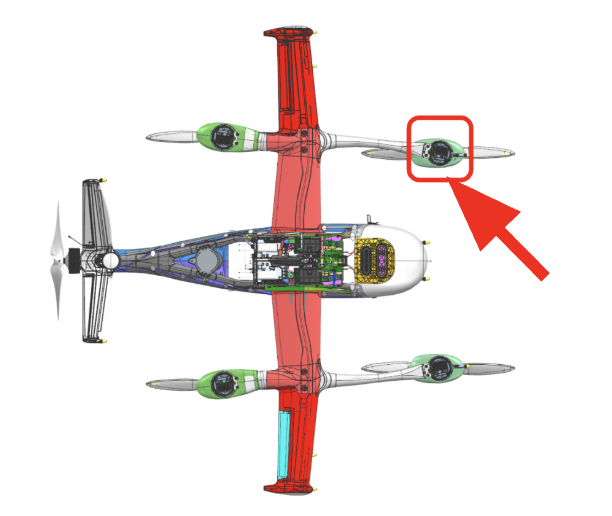

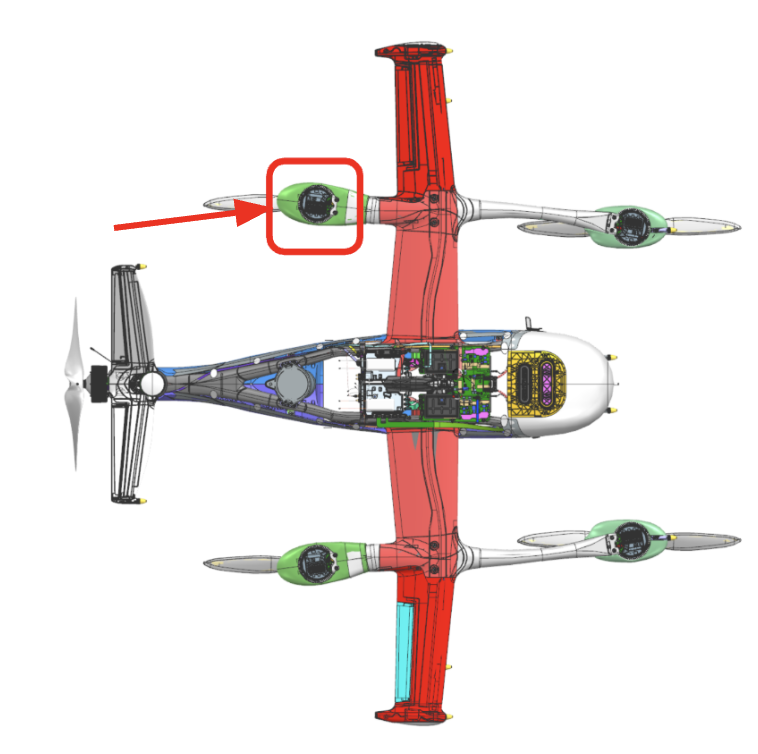

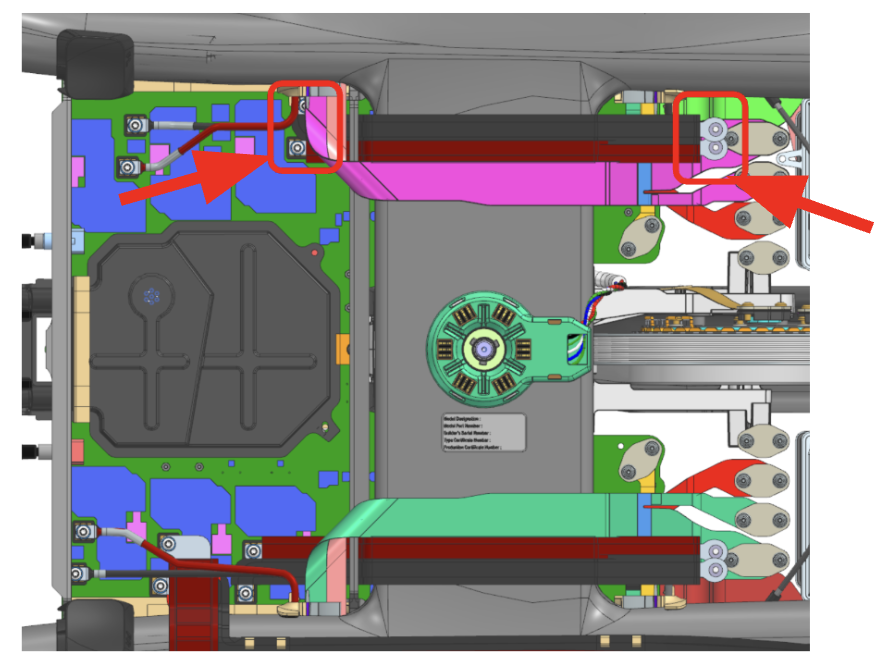

| Port Aft (PA) |  |
 |

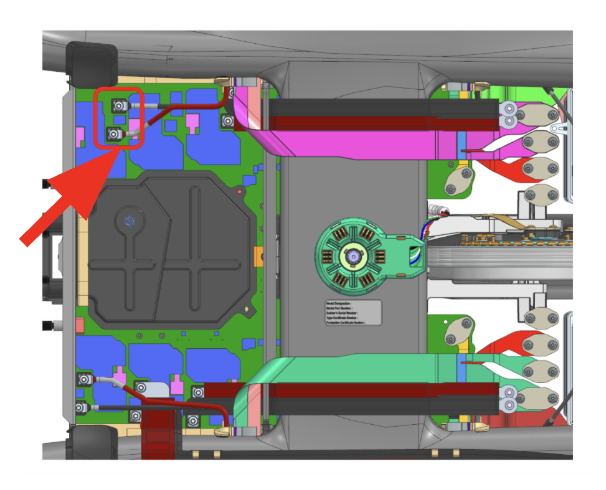

| Port Fwd (PF) |  |
 |

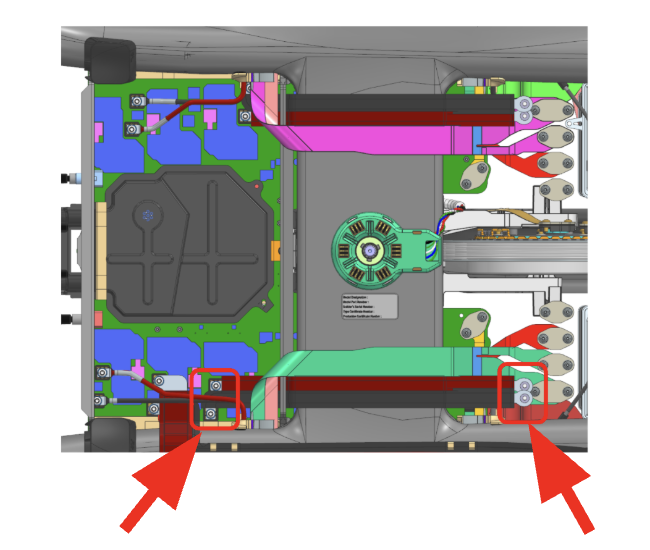

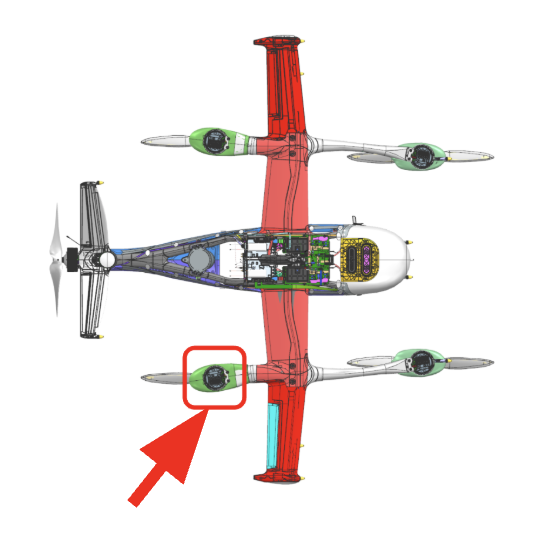

| Stbd Aft (SA) |  |
 |

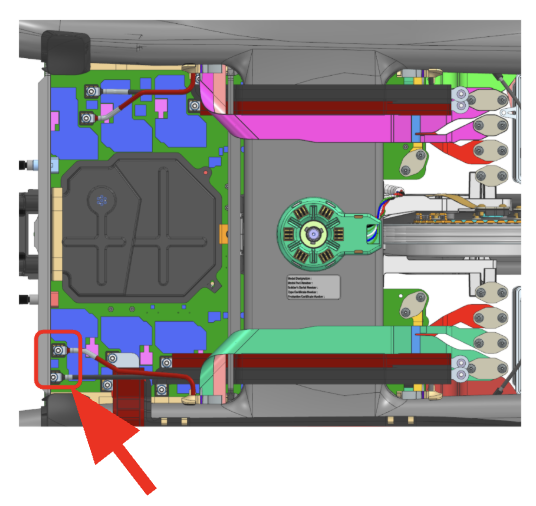

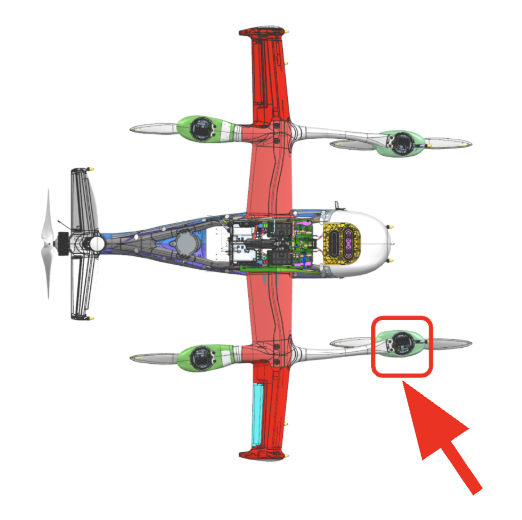

| Stbd Fwd (SF) |  |
 |
Mixed Motor
Section titled “Mixed Motor”| Mixed Motor Assy Part Name | Location |
|---|---|

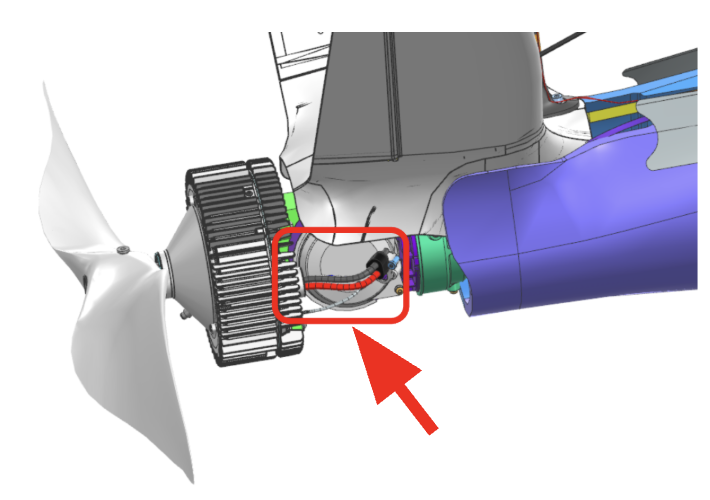

| Mixed motor cable harness |  |

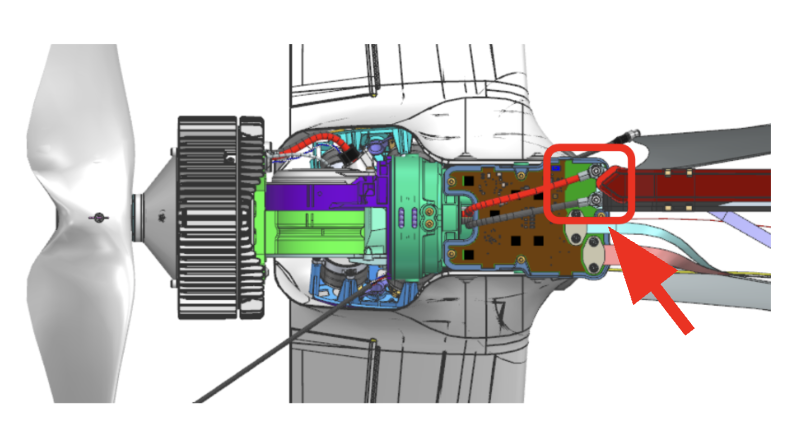

| Mixed motor cable harness to Mixed busbar |  |

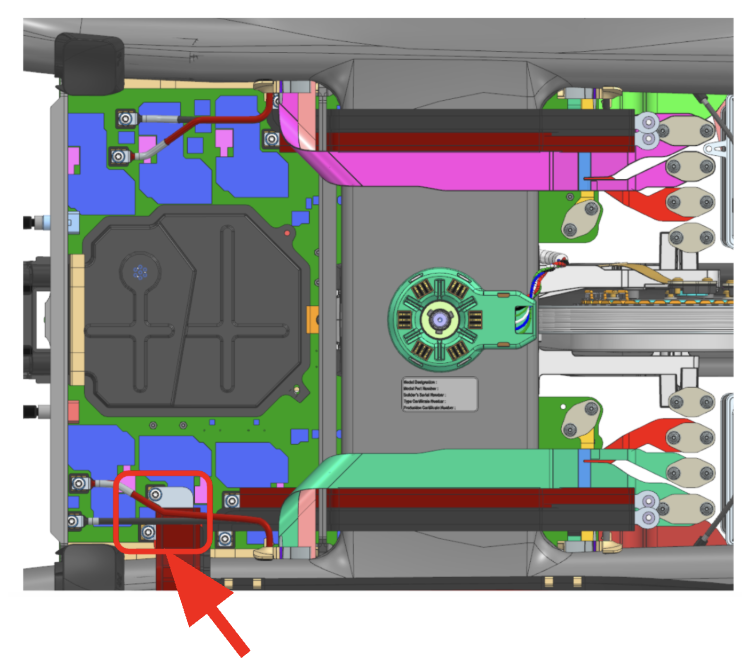

| Mixed Busbar to Distro Board (Power Distribution Board) |  |
Battery Harness
Section titled “Battery Harness”| Battery Harness | Location |
|---|---|

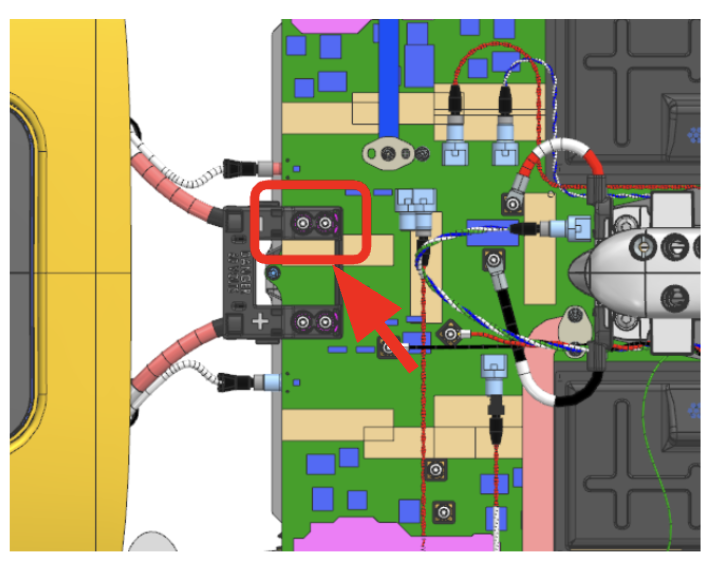

| Negative Battery Harness |  |

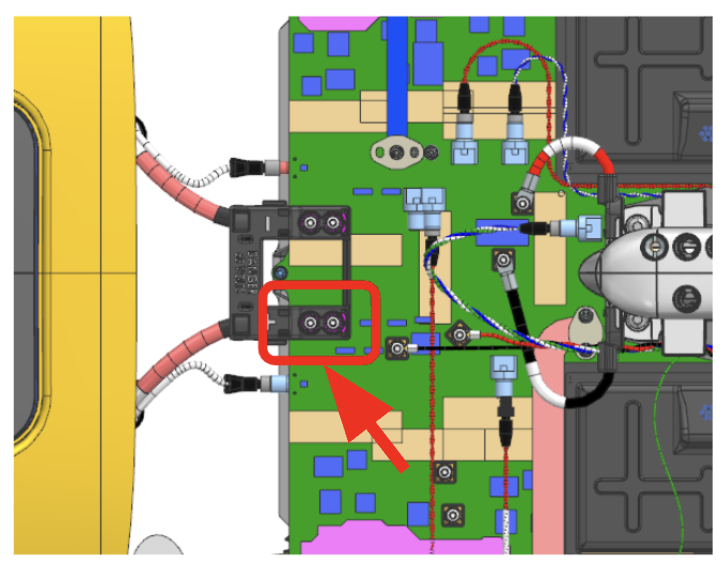

| Positive Battery Harness |  |
