Validator: Ethernet_health_signal_strength/distro*
Viewing this guide for
Applicable alarms (2)
Ethernet_health_signal_strength/distro_b_port_droid_sqi_a_wcEthernet_health_signal_strength/distro_b_port_droid_sqi_a_measure
Likely outcomes — click to expand
Based on 0 missions where this alarm fired in the last
90 days
(for Ethernet_health_signal_strength/distro_b_port_droid_sqi_a_wc) as of 2026-10-13
Aggregated from fleet operations and refreshed daily. Individual outcomes may vary by site and configuration.
Use this guide to troubleshoot the following shakedown validators:
- Ethernet_health_signal_strength/distro_b_port_droid_sqi_a_wc
- Ethernet_health_signal_strength/distro_b_port_droid_sqi_a_measure
Troubleshooting Steps
Section titled “Troubleshooting Steps”graph TD
open-the-droid-connection-health-checkin["<small><b>Step 1</b></small><br/>Action: Open the droid-connection-health-che..."]
is-droid-detected-via-load-switch-row-2{"<small><b>Step 2</b></small><br/>Question: Is droid_detected_via_load_switch ..."}
a-droid-is-installed-continue-to-the-nex["<small><b>Step 3</b></small><br/>Action: A Droid is installed."]
there-is-no-droid-installed-which-is-the["<small><b>Step 4</b></small><br/>Action: There is no Droid installed which is ..."]
is-link-status-row-3-solidly-link-up-is{"<small><b>Step 5</b></small><br/>Question: Is link_status row 3 solidly LIN..."}
the-droid-is-on-and-connected-continue-t["<small><b>Step 6</b></small><br/>Action: The Droid is ON and connected. Contin..."]
is-the-link-status-intermittently-toggli{"<small><b>Step 7</b></small><br/>Question: Is the link_status intermittently t..."}
the-droid-has-intermittent-wired-comms-i["<small><b>Step 8</b></small><br/>Action: The Droid has intermittent wired comm..."]
if-the-link-status-is-solidly-down-the-d{"<small><b>Step 9</b></small><br/>Question: If the link_status is solidly DOWN, t..."}
the-aircraft-may-return-to-service("<small><b>Step 10</b></small><br/>Reference: The Aircraft may return to service.")
send-the-droid-to-maintenance-for-mating["<small><b>Step 11</b></small><br/>Action: Send the Droid to maintenance for mat..."]
are-there-messages-from-the-droids-main{"<small><b>Step 12</b></small><br/>Question: Are there messages from the Droid’s m..."}
the-droid-firmware-nodes-are-powered-on["<small><b>Step 13</b></small><br/>Action: The Droid firmware nodes are powered ..."]
droid-power-is-not-in-a-good-state["<small><b>Step 14</b></small><br/>Action: Droid power is not in a good state. 1..."]
are-there-messages-from-the-droid-brain{"<small><b>Step 15</b></small><br/>Question: Are there messages from the Droid bra..."}
the-droid-connection-status-is-healthy-a{{"<small><b>Step 16</b></small><br/>Escalation: The Droid connection status is health..."}}
the-droid-brain-is-unhealthy["<small><b>Step 17</b></small><br/>Action: The Droid brain is unhealthy. 1. Powe..."]
open-the-droid-connection-health-checkin --> is-droid-detected-via-load-switch-row-2
is-droid-detected-via-load-switch-row-2 -->|Yes| a-droid-is-installed-continue-to-the-nex
is-droid-detected-via-load-switch-row-2 -->|No| there-is-no-droid-installed-which-is-the
a-droid-is-installed-continue-to-the-nex --> is-link-status-row-3-solidly-link-up-is
is-link-status-row-3-solidly-link-up-is -->|Yes| the-droid-is-on-and-connected-continue-t
is-link-status-row-3-solidly-link-up-is -->|No| is-the-link-status-intermittently-toggli
the-droid-is-on-and-connected-continue-t --> are-there-messages-from-the-droids-main
is-the-link-status-intermittently-toggli -->|Yes| the-droid-has-intermittent-wired-comms-i
is-the-link-status-intermittently-toggli -->|No| if-the-link-status-is-solidly-down-the-d
if-the-link-status-is-solidly-down-the-d -->|Yes| the-aircraft-may-return-to-service
if-the-link-status-is-solidly-down-the-d -->|No| send-the-droid-to-maintenance-for-mating
are-there-messages-from-the-droids-main -->|Yes| the-droid-firmware-nodes-are-powered-on
are-there-messages-from-the-droids-main -->|No| droid-power-is-not-in-a-good-state
the-droid-firmware-nodes-are-powered-on --> are-there-messages-from-the-droid-brain
are-there-messages-from-the-droid-brain -->|Yes| the-droid-connection-status-is-healthy-a
are-there-messages-from-the-droid-brain -->|No| the-droid-brain-is-unhealthy
style open-the-droid-connection-health-checkin fill:#dcfce7,stroke:#22c55e,color:#14532d
style is-droid-detected-via-load-switch-row-2 fill:#dbeafe,stroke:#3b82f6,color:#1e3a5f
style a-droid-is-installed-continue-to-the-nex fill:#dcfce7,stroke:#22c55e,color:#14532d
style there-is-no-droid-installed-which-is-the fill:#dcfce7,stroke:#22c55e,color:#14532d
style is-link-status-row-3-solidly-link-up-is fill:#dbeafe,stroke:#3b82f6,color:#1e3a5f
style the-droid-is-on-and-connected-continue-t fill:#dcfce7,stroke:#22c55e,color:#14532d
style is-the-link-status-intermittently-toggli fill:#dbeafe,stroke:#3b82f6,color:#1e3a5f
style the-droid-has-intermittent-wired-comms-i fill:#dcfce7,stroke:#22c55e,color:#14532d
style if-the-link-status-is-solidly-down-the-d fill:#dbeafe,stroke:#3b82f6,color:#1e3a5f
style the-aircraft-may-return-to-service fill:#f3e8ff,stroke:#a855f7,color:#581c87
style send-the-droid-to-maintenance-for-mating fill:#dcfce7,stroke:#22c55e,color:#14532d
style are-there-messages-from-the-droids-main fill:#dbeafe,stroke:#3b82f6,color:#1e3a5f
style the-droid-firmware-nodes-are-powered-on fill:#dcfce7,stroke:#22c55e,color:#14532d
style droid-power-is-not-in-a-good-state fill:#dcfce7,stroke:#22c55e,color:#14532d
style are-there-messages-from-the-droid-brain fill:#dbeafe,stroke:#3b82f6,color:#1e3a5f
style the-droid-connection-status-is-healthy-a fill:#fef3c7,stroke:#f59e0b,color:#78350f
style the-droid-brain-is-unhealthy fill:#dcfce7,stroke:#22c55e,color:#14532d Hover or focus a block to preview it. Select the block to keep the preview open.
1 action

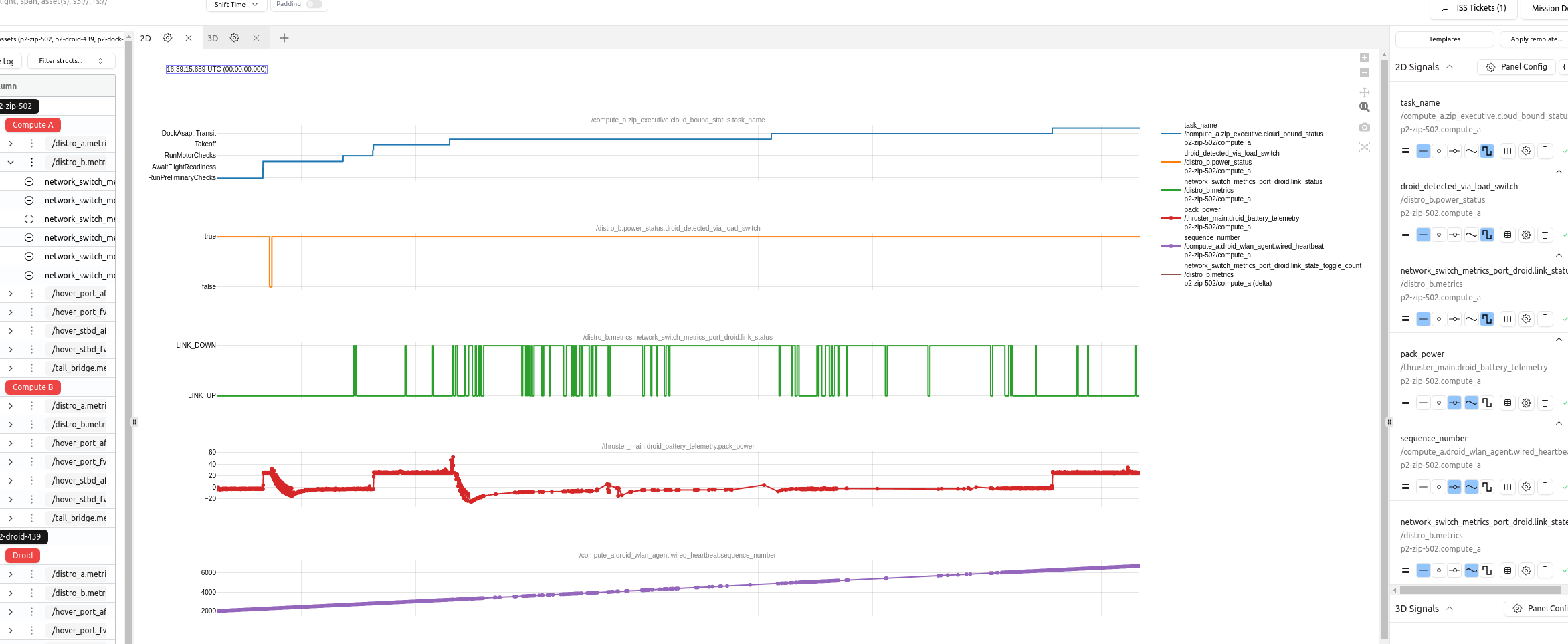

Open the droid-connection-health-checking template on Baraza, and enter the Mission ID. Example View
2 question
Is
droid_detected_via_load_switch (row 2) TRUE? [Allowing minor blip in RunPreMotorChecks, the above one is pass] 3 action
A Droid is installed.
4 action
There is no Droid installed which is the reason that the watchdog is failing.
1. Install a Droid.
2. Return the Aircraft to service.
1. Install a Droid.
2. Return the Aircraft to service.
5 question
Is
link_status (row 3) solidly LINK_UP? [Is it a flat line] 6 action
The Droid is ON and connected.
Continue to the next step.
Continue to the next step.
7 question
Is the

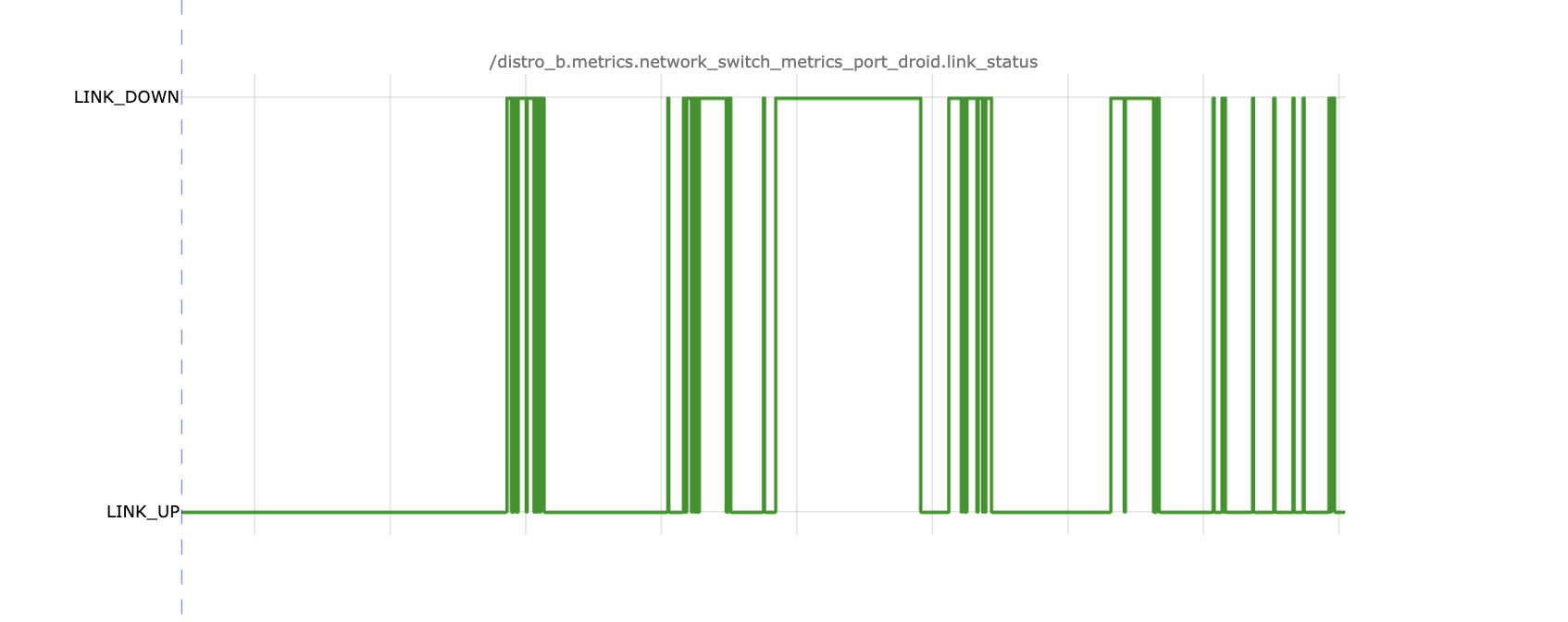

link_status intermittently toggling between UP and DOWN? [Is it something like the following] 8 action
The Droid has intermittent wired comms issues.
Send the Droid to maintenance for mating connector issues. See Droid to Aircraft Electrical Contacts Debugging.
Send the Droid to maintenance for mating connector issues. See Droid to Aircraft Electrical Contacts Debugging.
9 question
If the link_status is solidly DOWN, the Droid is either completely OFF or has been completely disconnected over Ethernet from the Aircraft.
Power cycle the Droid (Power Cycle Droid).
Is the issue resolved?
Power cycle the Droid (Power Cycle Droid).
Is the issue resolved?
10 reference
The Aircraft may return to service.
11 action
Send the Droid to maintenance for mating connector issues. See Droid to Aircraft Electrical Contacts Debugging.
12 question
Are there messages from the Droid’s main thruster node [are there dots on row 4]?
13 action
The Droid firmware nodes are powered on and working.
Continue to the next step.
Continue to the next step.
14 action
Droid power is not in a good state.
1. Power cycle the Droid (Power Cycle Droid).
2. Return the Droid to service.
3. If the issue is not resolved, escalate to p2-firmware-on-call.
1. Power cycle the Droid (Power Cycle Droid).
2. Return the Droid to service.
3. If the issue is not resolved, escalate to p2-firmware-on-call.
15 question
Are there messages from the Droid brain [are there dots on row 5]?
16 escalation
The Droid connection status is healthy and the Droid is online.
Escalate to P2 Droid Autonomy On Call to understand why there are no Droid exec messages.
Escalate to P2 Droid Autonomy On Call to understand why there are no Droid exec messages.
17 action
The Droid brain is unhealthy.
1. Power cycle the Droid (Power Cycle Droid).
2. Return the Droid to service.
3. If the issue is not resolved, escalate to P2 Embedded Linux On Call.
1. Power cycle the Droid (Power Cycle Droid).
2. Return the Droid to service.
3. If the issue is not resolved, escalate to P2 Embedded Linux On Call.
Resolution note
This plaintext block is ready to paste into the Resolution Note field on the ZERP issue you're working. The permalink below gives engineering review access to the full step-by-step timeline including any back-navigation; share it if the case needs a deeper look.
Permalink:
Session is too large to fit in a URL. Use Download session JSON to share the timeline out-of-band.
