    Dock - Dedicated vs Daisy Chain Network Connection

    published HW: EV2HW: EV3

    Dedicated Network Connection

    Section titled “Dedicated Network Connection”

    Each Dock has a direct Ethernet connection.

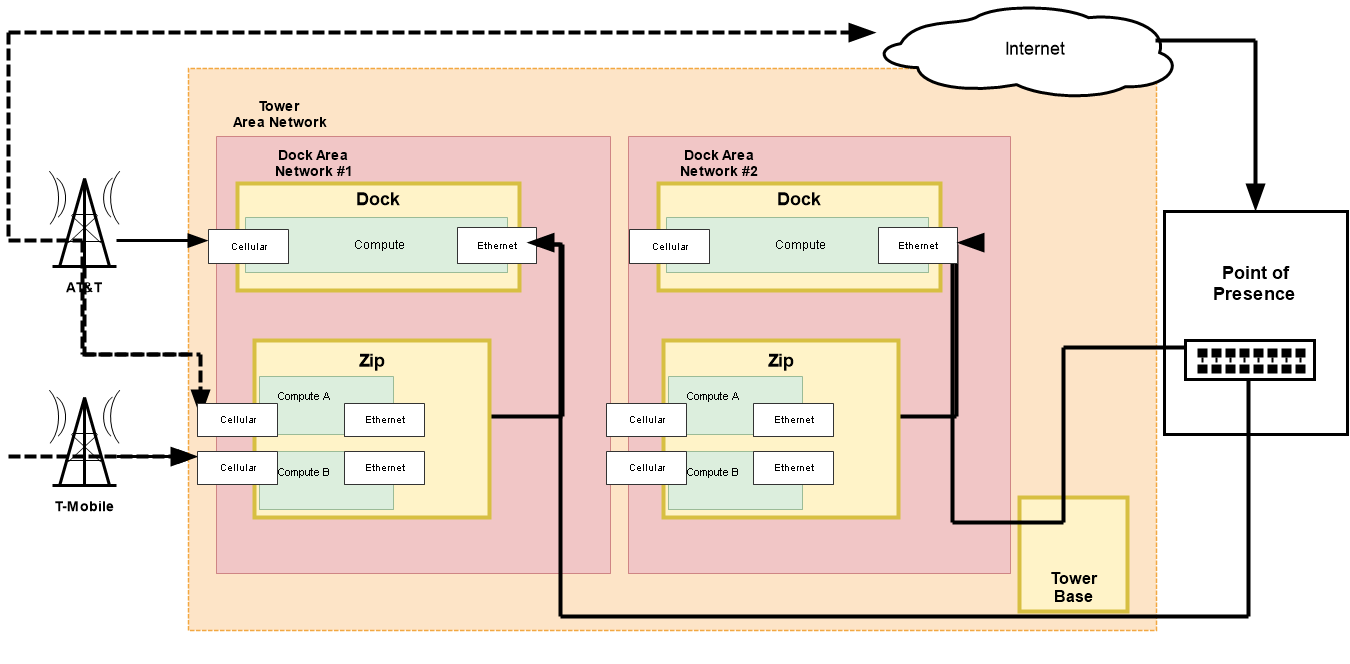

    Dedicated Dock network connection diagram

    Daisy Chain Network Connection

    Section titled “Daisy Chain Network Connection”

    When a Dock uses daisy chaining, the Dock on the bottom has the direct Ethernet connection to the network switch. The Dock on top connects to the bottom Dock’s second Ethernet port.

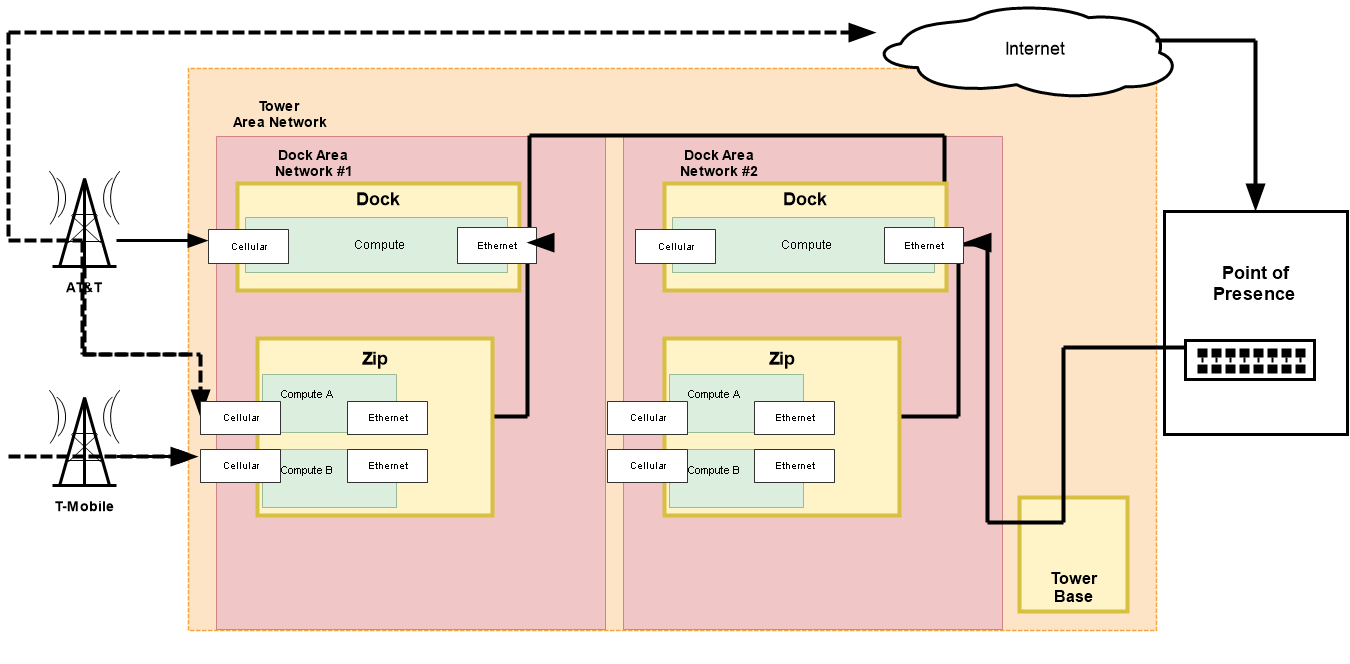

    Daisy chain Dock network connection diagram
