Calibrate Dock Latch (No Aircraft in Dock)

published HW: EV2HW: EV3

Background

If there is no Aircraft in the Dock, use Fleetwrangler to calibrate the latch. For safety reasons, the Application Software team will need to explicitly enable latch calibration for Fleetwrangler (see step 1). If there IS an Aircraft in the Dock, see Calibrate Dock Latch (Aircraft in Dock).

Troubleshooting Steps

graph TD
    enable-calibrate-feature-flag["<small><b>Step 1</b></small><br/>Action: Ask ASW Maintenance and Operations to..."]
    confirm-no-aircraft-in-dock["<small><b>Step 2</b></small><br/>Action: Visually confirm there is no Aircraft..."]
    enable-latch-calibration-for-dock["<small><b>Step 3</b></small><br/>Action: Ask the Application Software team to ..."]
    place-dock-into-diagnostic-mode["<small><b>Step 4</b></small><br/>Action: Place the Dock into Diagnostic mode. ..."]

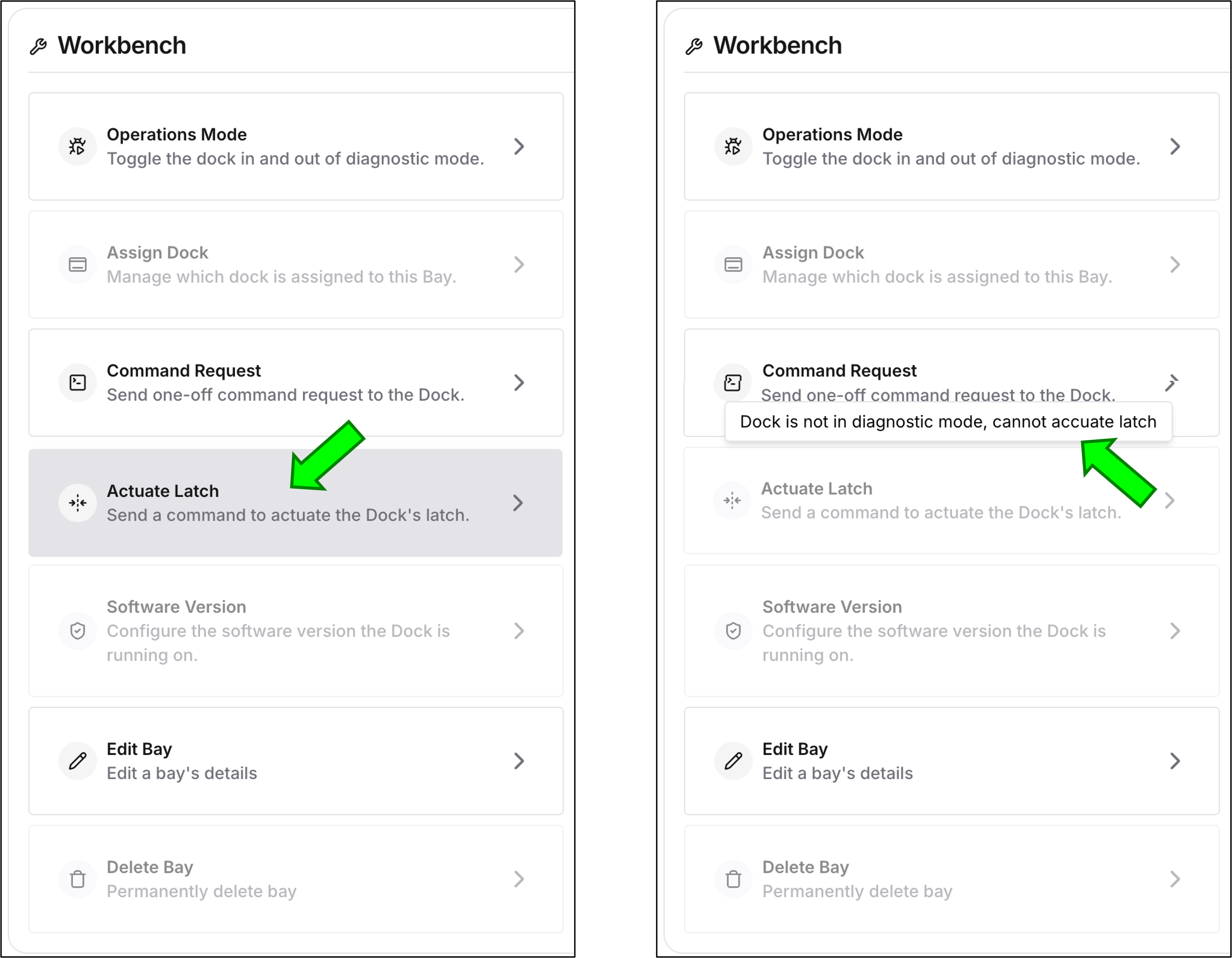

    click-actuate-latch["<small><b>Step 5</b></small><br/>Action: Under **Workbench**, click **Actuate ..."]

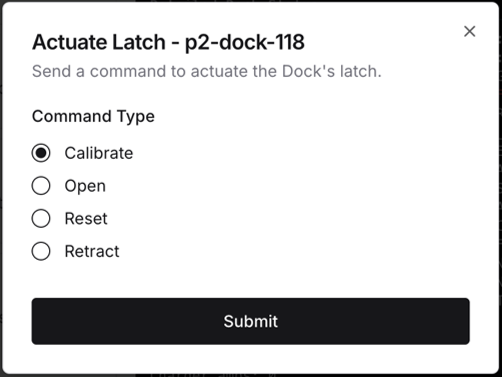

    submit-calibrate["<small><b>Step 6</b></small><br/>Action: Select **Calibrate** and click **Subm..."]
    confirm-latch-empty["<small><b>Step 7</b></small><br/>Action: In FleetWrangler, in the Dock's **Det..."]
    place-dock-into-standard-mode["<small><b>Step 8</b></small><br/>Action: Place the Dock into Standard mode. Fo..."]
    disable-latch-calibration["<small><b>Step 9</b></small><br/>Action: Ask @asw-mx-noc-on-call to disable ..."]
    enable-calibrate-feature-flag --> confirm-no-aircraft-in-dock
    confirm-no-aircraft-in-dock --> enable-latch-calibration-for-dock
    enable-latch-calibration-for-dock --> place-dock-into-diagnostic-mode
    place-dock-into-diagnostic-mode --> click-actuate-latch
    click-actuate-latch --> submit-calibrate
    submit-calibrate --> confirm-latch-empty
    confirm-latch-empty --> place-dock-into-standard-mode
    place-dock-into-standard-mode --> disable-latch-calibration
    style enable-calibrate-feature-flag fill:#dcfce7,stroke:#22c55e,color:#14532d
    style confirm-no-aircraft-in-dock fill:#dcfce7,stroke:#22c55e,color:#14532d
    style enable-latch-calibration-for-dock fill:#dcfce7,stroke:#22c55e,color:#14532d
    style place-dock-into-diagnostic-mode fill:#dcfce7,stroke:#22c55e,color:#14532d
    style click-actuate-latch fill:#dcfce7,stroke:#22c55e,color:#14532d
    style submit-calibrate fill:#dcfce7,stroke:#22c55e,color:#14532d
    style confirm-latch-empty fill:#dcfce7,stroke:#22c55e,color:#14532d
    style place-dock-into-standard-mode fill:#dcfce7,stroke:#22c55e,color:#14532d
    style disable-latch-calibration fill:#dcfce7,stroke:#22c55e,color:#14532d

Hover or focus a block to preview it. Select the block to keep the preview open.

1 action

Ask ASW Maintenance and Operations to temporarily turn on the fleet-wrangler-show-calibrate-command feature flag.

- Ensure the flag is only turned on for the relevant environment.
- Ensure they turn it off after calibration is complete.
