How to Check if Droid is Left Behind

published HW: EV2HW: EV3

Background

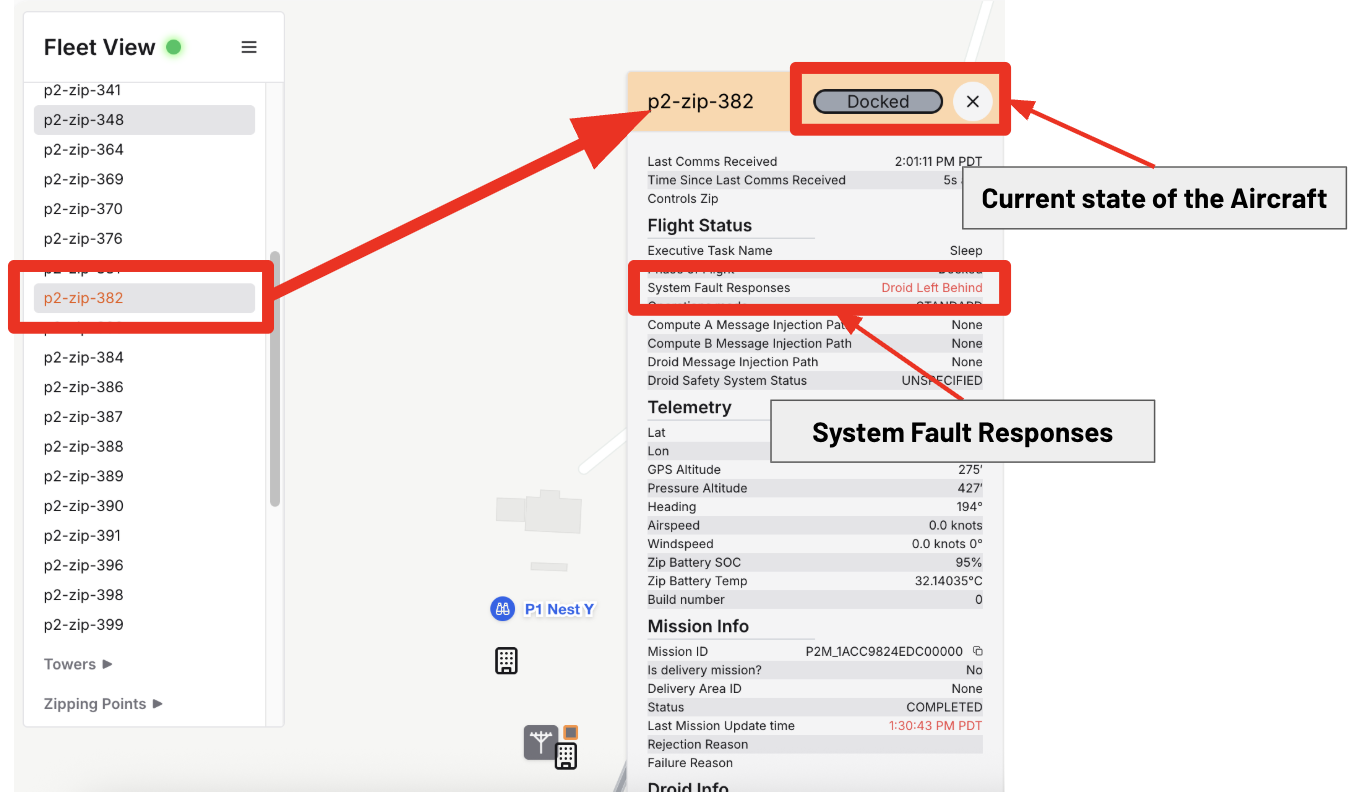

To verify that a Droid has been left behind, check the current status of System Fault Responses in Fleet View.

Procedure

graph TD
    is-this-a-recent-failure{"<small><b>Step 1</b></small><br/>Question: Is this a recent failure?"}
    open-fleet-apps-here["<small><b>Step 2</b></small><br/>Action: Open Fleet apps herehttps://fleet-..."]
    open-the-fleet-view-app["<small><b>Step 3</b></small><br/>Action: Open the Fleet View app."]

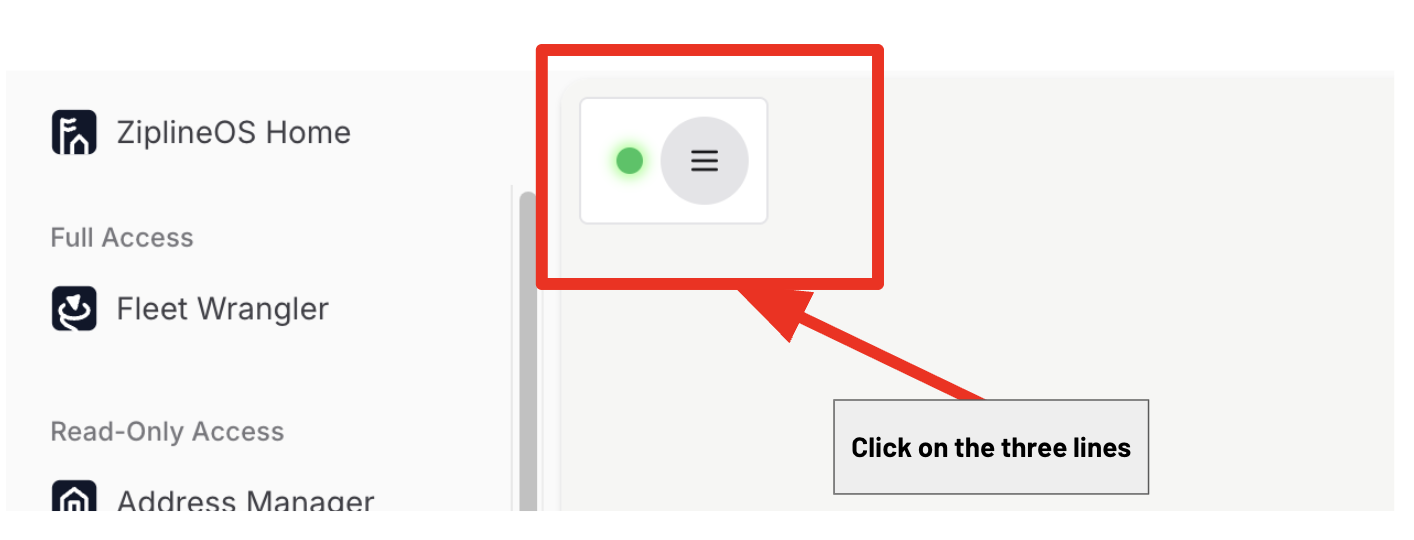

    open-fleet-view-menu["<small><b>Step 4</b></small><br/>Action: In Fleet View, click the “three lines..."]

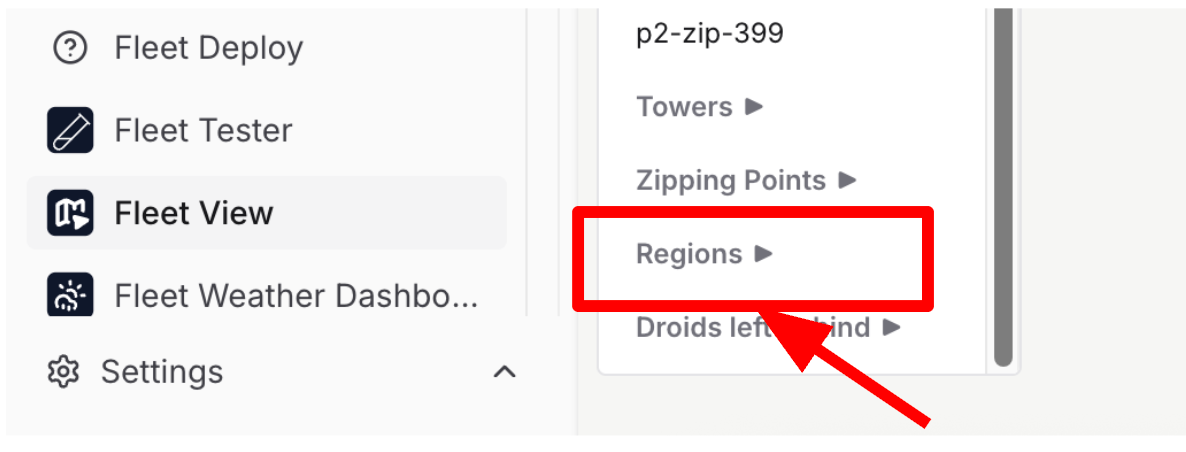

    select-regions["<small><b>Step 5</b></small><br/>Action: In the drop down list, select **Regio..."]

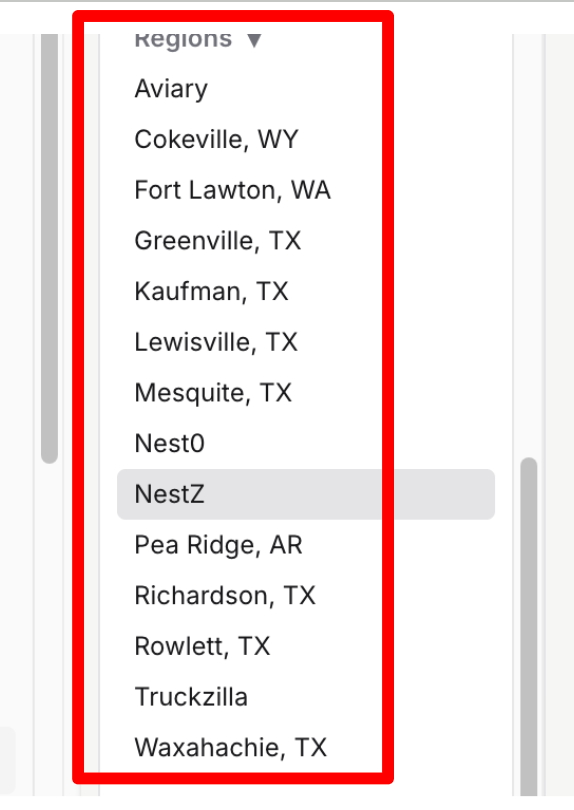

    select-site["<small><b>Step 6</b></small><br/>Action: In the Regions drop-down list, select..."]
    select-aircraft["<small><b>Step 7</b></small><br/>Action: Select the Aircraft that has the Droi..."]

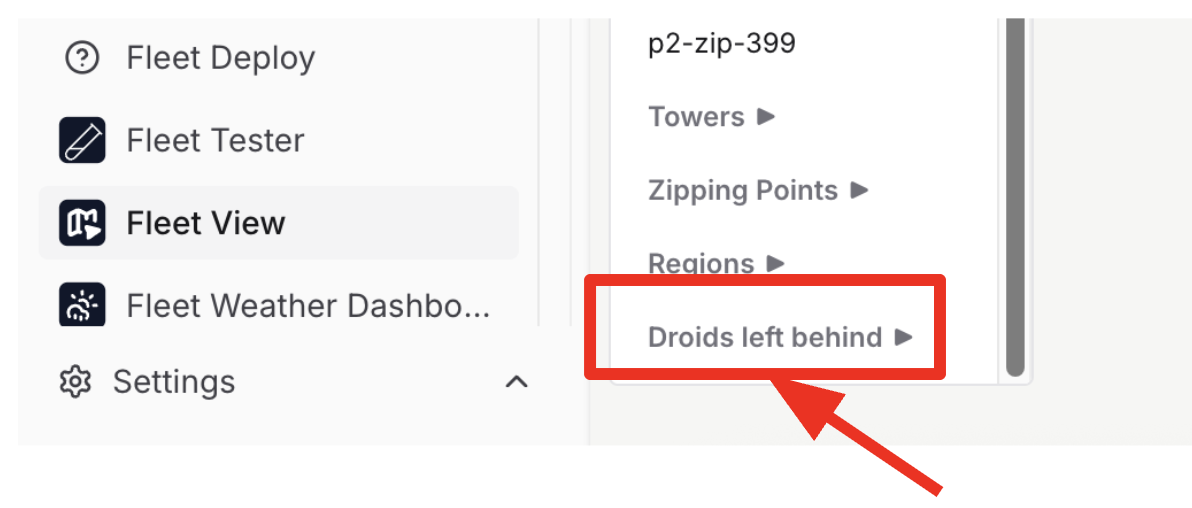

    view-droids-left-behind["<small><b>Step 8</b></small><br/>Action: **Optional:** To view all Droids that..."]
    check-executive-logs["<small><b>Step 9</b></small><br/>Action: If this is not a recent failure, look..."]
    is-this-a-recent-failure -->|Yes| open-fleet-apps-here
    is-this-a-recent-failure -->|No| check-executive-logs
    open-fleet-apps-here --> open-the-fleet-view-app
    open-the-fleet-view-app --> open-fleet-view-menu
    open-fleet-view-menu --> select-regions
    select-regions --> select-site
    select-site --> select-aircraft
    select-aircraft --> view-droids-left-behind
    style is-this-a-recent-failure fill:#dbeafe,stroke:#3b82f6,color:#1e3a5f
    style open-fleet-apps-here fill:#dcfce7,stroke:#22c55e,color:#14532d
    style open-the-fleet-view-app fill:#dcfce7,stroke:#22c55e,color:#14532d
    style open-fleet-view-menu fill:#dcfce7,stroke:#22c55e,color:#14532d
    style select-regions fill:#dcfce7,stroke:#22c55e,color:#14532d
    style select-site fill:#dcfce7,stroke:#22c55e,color:#14532d
    style select-aircraft fill:#dcfce7,stroke:#22c55e,color:#14532d
    style view-droids-left-behind fill:#dcfce7,stroke:#22c55e,color:#14532d
    style check-executive-logs fill:#dcfce7,stroke:#22c55e,color:#14532d

Hover or focus a block to preview it. Select the block to keep the preview open.

1 question

Is this a recent failure?

9 action

If this is not a recent failure, look for these lines that may be present in the aircraft executive logs:

"task_status": "In Progress: The safety app is performing a winch line cut."

INFO "DockAsap trigger detected while delivering: CanDeliver failed: Winch line cutter squib is in a terminal state of Success, so deliveries cannot be performed."

"reason": "The safety app has completed the winch line cut."
